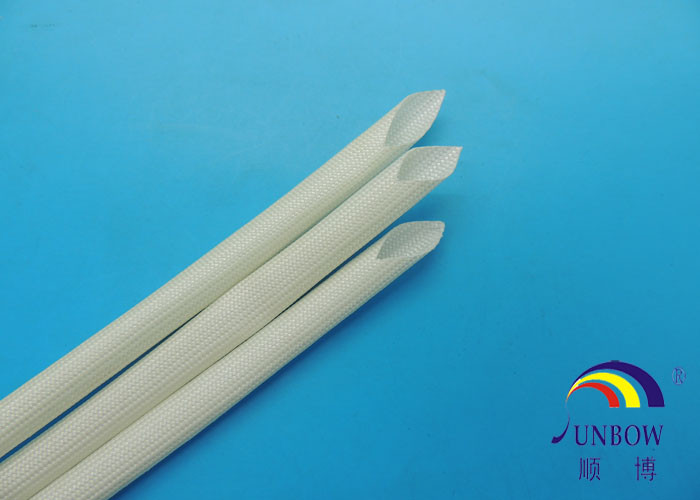

Insulation Acrylic Fiberglass Sleeving / Sleeves Wear Resistance and oil proof
1. Model Number: SB-AGS-40
Working temperature: -40ºC ~ 155ºC
2. Structure
0.5mm to 30.0mm Yellow Acrylic Resin Fiberglass Sleeving for Wire Insulation is braided with superior fiberglass, then coated with acrylic resin and treated in suitable high temperature. It is widely used in Class F motors, household electrical appliances, electrical heat devices, and special lamps and lanterns for insulation protection.
3. Dimension
| Inside Diameter (mm) | Minimum Thickness (mm) | | Nominal | Tolerance | Class A(4.0KV) | Class B(2.5KV) | | 0.5~2.5 | +0.25, -0.00 | 0.38 | 0.20 | | 3.0~4.5 | +0.30, -0.00 | 0.45 | 0.23 | | 5.0~6.0 | +0.40, -0.00 | 0.45 | 0.28 | | 7.0~9.0 | +0.55, -0.00 | 0.50 | 0.32 | | 10.0~14.0 | +0.75, -0.00 | 0.60 | 0.40 | | 15.0~25.0 | +0.85, -0.00 | 0.64 | 0.43 | |
4. Performance
| Grade | Heat Resistance | Avg. Voltage | Lowest Voltage | Flame Resistance | Insulation Performance | Oil Resistance | | SB-AGS-15 | -40ºC~+155ºC | 1500V | 800V | Yes | Yes | Yes (no water resistance) | | SB-AGS-25 | -40ºC~+155ºC | 2500V | 1500V | Yes | Yes | Yes (no water resistance) | | SB-AGS-40 | -40ºC~+155ºC | 4000V | 2500V | Yes | Yes | Yes (no water resistance) | |
5. Package Information
0.5mm ~ 4.0mm, 200 meters/roll;
4.5mm ~ 10.0mm, 100 meters/roll;
12.0mm ~ 18.0mm, 50 meters/roll;
20.0mm ~ 30.0mm, 25 meters/roll.
Carton Size 35*35*60cm
6. We Promise
1) We promise our clients excellent quality, reasonable price, perfect service and on-time delivery. We are committed to becoming a globally-outstanding and recognized leader in insulation sleeving industry, a preferred and qualified supplier of world-class manufacture and a well-known enterprise all over the world;
2) We promise all our products supplied are of high quality, environmental-friendly, safe and reliable. We always make our contribution to human and social harmony;
3) We promise that all our products follow close to the line of all applicable laws, rules and regulations, and any other related requirements;
4) We improve our equipment performance, make innovation in our technologies and upgrade our specifications continuously. We are keeping improving our products quality, saving energy, pursueing low-carbon economy and improving environmental-friendly and safe performance of the products;
5) We are committed to providing our staffs with effective and comprehensive training and corresponding resources to improve their skills and their awareness of health, safety and environmental protection. We apply ourselves to improve our staffs' professional skills and quality to ensure that they can improve working performance and career competitiveness.
7. Why Us
1) best price high quality product
2) quick delivery time
3) quick response for feedback
4) few complaints from customers
5) more competitive price for VIP customers
6) ISO 9001 : 2008 TS 16949 standard factory manufacturer
7) high-tech enterprise in China
8) with 12-year manufacturing experience
9) factory direct sales
10) convenient situation near to seaport
11) flame resistant tube of this type is available
12) high quality non-alkali fiberglass yarn
13) free samples are available
8. More Pictures to See
