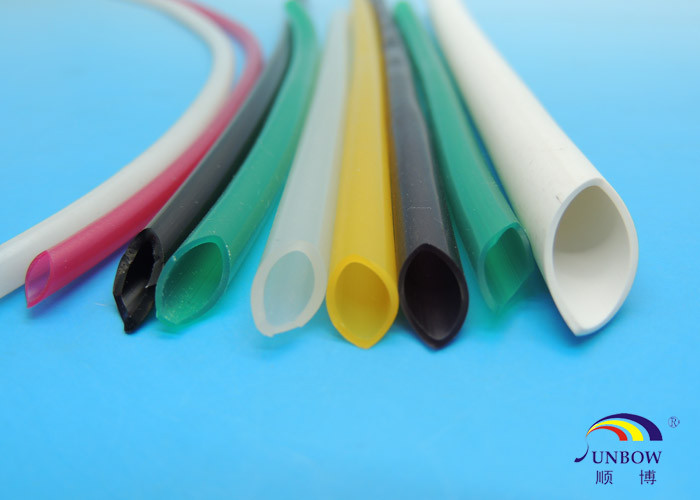

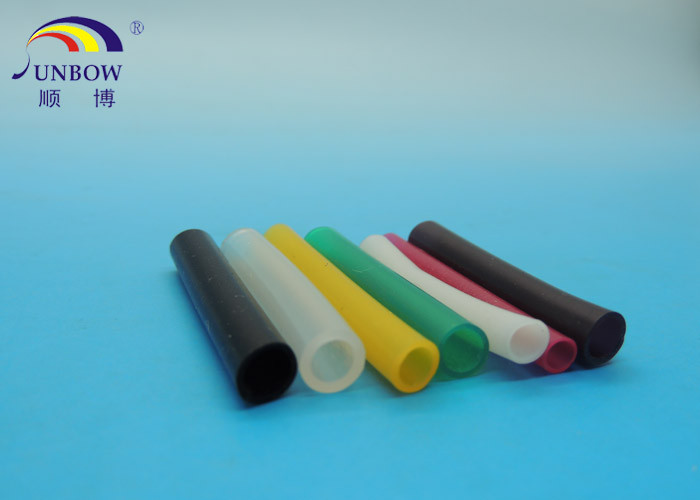

Custom Silicone Rubber Extrusion Silicone Rubber Tube 200C Black Clear White
Model Number: SB-SRT
Usage
Silicone rubber tubing with service temperature -30ºC to 250ºC. They are commonly used in contact with foods in accordance with provisions of FDA 21 CFR 177.2600 and in electric insulation.
It can be installed in coffee maker, water dispenser, electric water bottle, car wire hardness, or used in electric insulation for semiconductor etc.
Specification
| Performance | Test method | Performance index |
| Dielectric strength (kv/mm) | GB/T 1048 | ≥18 |
| Volume resistivity (Ω/cm) | GB/T 1410 | ≥1x1014 |
| Tearing strength (MPa) | GB/T 1040 | ≥3.5 MPa |
| Elongation (%) | GB/T 1040 | ≥210 |
| Fire resistance(flame retarded products) | GB/T 2408 | FV-1 |
Dimension of 2.5kv 4kv 6kv 7kv breakout voltage 200ºC silicone rubber tube for dielectric strength
| Size | Tolerance(mm) | Thickness and tolerance |
| | | 2500V(mm) | 4000V(mm) | 6000V(mm) | 7000V(mm) |
| φ0.8 | 0.8±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ1.0 | 1.0±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ1.5 | 1.5±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ2.0 | 2.0±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ2.5 | 2.5±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ3.0 | 3.0±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ3.5 | 3.5±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ4.0 | 4.0±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ4.5 | 4.5±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ5.0 | 5.0±0.20 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ5.5 | 5.5±0.20 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ6.0 | 6.0±0.20 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ6.5 | 6.5±0.20 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ7.0 | 7.0±0.20 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ7.5 | 7.5±0.20 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ8.0 | 8.0±0.25 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ9.0 | 9.0±0.25 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ10.0 | 10.0±0.25 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ11.0 | 11.0±0.30 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ12.0 | 12.0±0.30 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ13.0 | 13.0±0.30 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ14.0 | 14.0±0.30 | — | — | 1.50±0.20 | 2.00±0.25 |
| φ15.0 | 15.0±0.30 | — | — | 1.50±0.20 | 2.00±0.25 |
| φ20.0 | 20.0±0.30 | — | — | — | 2.50±0.3 |
Note: Default color is transparent, other color can be customized upon request.
Why choose Sunbow? Competitive point from SUNBOW,
1) ISO 9001 : 2008 factory manufacturer,
2) high-tech enterprise and TS 16949 standard in China,
3) 12-year manufacturing experience,
4) factory direct sales and stardard after-sales service procedure,
5) best price high quality product,
6) quick delivery time for sample or formal orders,
7) quick response for feedback in email or calls,
8) few complaints from customers,
9) more competitive price for VIP customers,
10) convenient situation near to Shenzhen seaport,
11) flame resistant feature is available.
