Expandable Baided PET cable protective sleeving For wire protection
Model number: SB-ES
Working temperature:-50 - 150 degree
Melting point: 250 degree
Flame resistant grade: UL VW-1
Structure:
The PET expandable braided cable protection sleeving is braided environmental-friendly polyester monifil.(PET, PA6, PA66, PPS), It possesses good flexibility, fire resistance, abrasive resistance and thermal insulation performance. The sleeving owns smooth surface, bright color, various patterns.
Usage and main parameters,
Expandable sleeving is widely used in bounding and protecting of electrical cables, automobile and aviation, sectors.
The selection of this product refers to following four parameters, 1 25 048 006
A B C D
A-yarn number (one or three) 3 20 072 018 A B C D B-Diameter of single yarn(0.25mm or 0.20mm)
C-Strand number(48 spindles braiding machine or 72 spindles braiding machine).
D-Flat width(6mm or 18mm).
SPECIFICATION: Expandable Sleeves Braided PET Suitable for Computer Cables and Automotive Wire
| Part No. | Model No. | Min Width (mm) | Max Width(mm) | Part No. | Model No. | Min Width(mm) | Max Width (mm) |
| 24# | 120024 | 3 | 6 | 56# | 120056 | 8 | 16 |
| 125024 | 3 | 6 | 125056 | 8 | 16 |
| 320024 | 4 | 8 | 320056 | 10 | 20 |
| 325024 | 4 | 8 | 325056 | 10 | 20 |
| 32# | 120032 | 4 | 8 | 64# | 120064 | 9 | 18 |
| 125032 | 4 | 8 | 125064 | 9 | 18 |
| 320032 | 5 | 10 | 320064 | 12 | 24 |
| 325032 | 5 | 10 | 325064 | 12 | 24 |
| 36# | 120036 | 5 | 10 | 72# | 120072 | 10 | 12 |
| 125036 | 5 | 10 | 125072 | 10 | 12 |
| 320036 | 6 | 12 | 320072 | 15 | 30 |
| 325036 | 6 | 12 | 325072 | 15 | 30 |
| 40# | 120040 | 6 | 12 | 96# | 120096 | 12 | 24 |
| 125040 | 6 | 12 | 125096 | 12 | 24 |
| 320040 | 7 | 14 | 320096 | 20 | 40 |
| 325040 | 7 | 14 | 325096 | 25 | 50 |
| 48# | 120048 | 7 | 14 | 120# | 120120 | 15 | 30 |
| 125048 | 7 | 14 | 125120 | 15 | 30 |
| 320048 | 8 | 16 | 320120 | 30 | 70 |
| 325048 | 8 | 16 | 325120 | 35 | 100 |
APPLICATION: Expandable Sleeves Braided PET Suitable for Computer Cables and Automotive Wire FAQ 1. Why choose us?
We are the No.1 insulation materials supplier in China.
2. What's your best seller?
Our best seller is silicone fiberglass sleeving and the Heat shrink tube.
3. What material do you use?
Fiberglass yarn and silicone resin,PVC,silicone,PE,PET
4. Where is your factory?
In Shenzhen. The loading port here is Yantian or Shekou.
5. How do you control the quality?
We have 10 QC team.
Each process has one QC. We check carefully before shipment.
6. What’s your quality guarantee?
2 years.
7. What’s your sample lead time?
can ship right now if in the stock.5 working days if the items are in stock.
8. Is the sample free charge?
Yes,it is free but the express fee should be paid by buyer.
9.What’s your mass production lead time?
2-7 working days.
10. What’s your payment terms?
L/C at sight, T/T in advance,Western Union,Paypal.
11. What’s your trade term?
EXW, FOB SHEZNEHN, CIF, CFR.
12. What’s your Certificate?
ISO9001, TS16949, UL, ROHS, RACH
13. What’s your MOQ?
2000 meters each, can be discussed if in stock.
Product Tags:
|
|

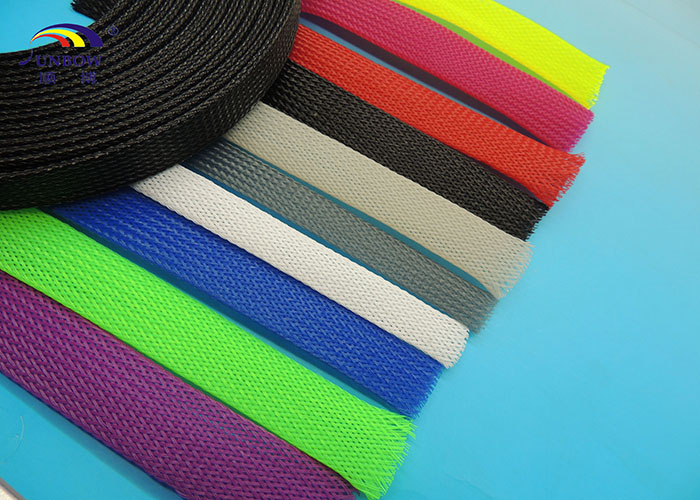

Expandable Baided PET cable protective sleeving For wire protection Images
|
