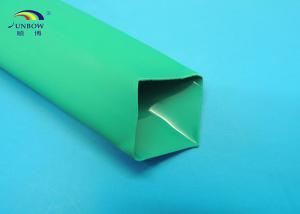

Shrink ratio 3:1 polyolefin heat shrinkable tube heavy adhesive-lined

Product Categories
Shenzhen Sunbow Insulation Materials MFG. CO., LTD
Contact Now

Shrink ratio 3:1 polyolefin heat shrinkable tube heavy adhesive-lined

Brand Name : Sunbow

Model Number : SB-SBRS-(3X)GLW

Certification : UL no E360625,RoHS/REACH

Place of Origin : China

MOQ : 500M

Price : USD0.09-16.4 per meter

Payment Terms : Western Union, T/T,paypal

Supply Ability : 9,000,000 meters per month

Packaging Details : packing by rolls,50-200m/roll

Characteristic : Flexible, flame retardant, eco-friendly, quick shrink, bright color stand, stable performance

Working temperature : -45ºC ~ 125ºC

Shrink ratio : 3:1

Shrink temperature : 70ºC ~ 125ºC

Size : inner diameter 3.2-39mm

Color : black,blue,red,blue......

Contact Now

Advantage
1. Great production ability as high as 9,000,000 meters/month
2. Competitive price with quality products
3. Whole color UL certificated with inner diameter 3.2-39mm

Characteristics
Working Temperature: -45ºC ~ 125ºC
Shrink Temperature: 70ºC ~ 125ºC
Shrink Ratio: 3:1

Structure
The soft heavy adhesive-lined heat shrinkable tube adopts flame retardant, cross-linked polyolefin material with an inner coating of hot-melt adhesive and outer layer that shrinks to provide electrical and mechanical protection. The outer layer has excellent insulation, wear and corrosion resistant performances. The inner layer has the excellence of low melt point and waterproof etc. It has passed UL,
RoHS, Reach certifications with 600V and 300V.

Usage
It is widely used in manufacturing of electrical and electronics, communications, automobiles, shipping, aircraft, etc.

Standard
Production standards: UL224, CAN/CSA C22.2 NO198.1-99, SAE-AMS-DTL-23053/4

Dimension

Inner Diameter

As Supplied (mm)

After Recovery(mm)

Package

(inch)

(mm)

ID

Max ID

Total Wall Thickness

Glue Thickness

(m/roll)

(m/pc)

1/8

φ3.2

≥3.2

≤1.00

0.90±0.30

0.45±0.20

200

—

3/16

φ4.8

≥4.8

≤1.60

1.20±0.30

0.55±0.20

100

—

1/4

φ6.4

≥6.4

≤2.20

1.25±0.30

0.55±0.20

100

—

5/16

φ7.9

≥7.9

≤2.70

1.35±0.30

0.65±0.20

100

—

3/8

φ9.5

≥9.5

≤3.20

1.35±0.30

0.65±0.20

50

1.22

1/2

φ12.7

≥12.7

≤4.20

1.55±0.40

0.75±0.20

—

1.22

5/8

φ15.0

≥15.0

≤5.20

1.65±0.40

0.75±0.20

—

1.22

3/4

φ19.1

≥19.1

≤6.30

1.90±0.40

0.85±0.20

—

1.22

1

φ25.4

≥25.4

≤8.50

2.00±0.40

0.90±0.20

—

1.22

1-1/4

φ30.0

≥30.0

≤10.20

2.05±0.40

0.90±0.20

—

1.22

1-1/2

φ39.0

≥39.0

≤13.50

2.35±0.40

1.05±0.20

—

1.22

Color:Standard color is black,other colors available upon request

Company information
Our main products include various fiberglass sleeving, silicone tube (especially the platinum cured silicone tube), PTFE tube, PVC tube, Heat shrinkable tube and so on.
All our products have obtained theUL and CSA certificates (Cert No: E333178 --UZIQ2, VW-1 & E333177--UZFT2/8,200C, 600V).Also all our products are in conformance with the European RoHS requirements. Furthermore, based on European new requirements, we re-apply and obtained German PFOA and PFOS certificates and European REACH reportshowing that our products do not contain 73 high-risk substances. In Sep.2009, we successfully passed ISO9001:2008international quality management system certification, nowISO14001system is also pushing.
