Polyolefin PO heat shrink sleeve with Meltable Adhesive Liner

Name: Polyolefin PO heat shrink sleeve with Meltable Adhesive Liner
Brand: Sunbow
Price: 0.256 USD

Wholesale Polyolefin PO heat shrink sleeve with Meltable Adhesive Liner from china suppliers

Brand Name : Sunbow

Model Number : SB-SBRS-(4X)GR

Certification : UL(UL No.: E360625), RoHS, Reach, ISO9001:2008, TS16949

Place of Origin : Shenzhen 518106, Guangdong, China

MOQ : 1000 meter

Price : US$0.256/M - US$2.364/M

Payment Terms : T/T, PayPal, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 3000000 meter/year

Packaging Details : Sunbow Standard Package.

Product name : Semi-rigid Irradiated Heat Shrinkable Polyolefin (PO) with Meltable Adhesive Liner 12.0mm Black

Working temperature : -45C - 125C

Shrink temperature : 70C - 125C

Shrink ratio : 4:1

Size : 6.0mm - 18.0mm

Color : Black, red, yellow, green, blue, transparent

Property : Insulation, waterproof, sealing, flame retardant

Application : Automobile and marine wire harness, breakouts

Contact Now

Polyolefin PO heat shrink sleeve with Meltable Adhesive Liner

Model number: SB-SBRS-(4X) GR

Working temperature: -45ºC ~ 125ºC

Shrink temperature: 70ºC ~ 125ºC

Shrink ratio: 4:1

Structure:

Semi-rigid Irradiated Heat Shrinkable Polyolefin (PO) with Meltable Adhesive Liner 12.0mm Black adopts flame retardant, cross-linked polyolefin material with an inner coating of hot-melt adhesive and outer layer that shrinks to provide electrical and mechanical protection. The outer layer has excellent insulation, wear and corrosion resistant performance. The inner layer has the excellence of low melt point and waterproof etc. It has passed UL, RoHS, Reach certifications with 600V/300V.

Usage:

Semi-rigid Irradiated Heat Shrinkable Polyolefin (PO) with Meltable Adhesive Liner 12.0mm Black allows a few sizes to cover a wide range of splices and component diameters, mechanically tough tubing provides strain relief and abrasion protection of wire splices, terminals, and other components, adhesive-lined against fluids, moisture and other contaminants.

Standards:

Production standards: UL224, CAN/CSA C22.2 NO198.1-99

Features:

4:1 very high shrink ratio

Longitudinal shrink 8% max
Out jacket flame retardant
Continuous operating temperature: -45C - 125C
Shrink temperature: 70C - 125C

Technical data:

Property	Test Method	Standard
Tensile strength(MPa)	ASTM D2671	≥12
Elongation	ASTM D2671	≥300
Tensile strength after aging(MPa)	UL224 158C*168hrs	≥7.3
Elongation after aging(%)	UL224 158C*168hrs	≥200
Dielectric strength(KV/mm)	IEC243	≥15
Volume resistivity(Ω.cm)	ASTM D876	≥1*10¹⁴

Hot melt adhesive property:

Property	Test Method	Standard
Water absorption	ASTM D570	≤0.2%
Softening point	ASTM E8	95C
Strength of pearing(PE)	ASTM D1000	120N/25mm
Strength of pearing(AL)	ASTM D1000	80N/25mm

Dimension:

Inner Diameter		As Supplied(mm)	After Recovery(mm)			Standard Length
(inch)	(mm)	ID	Max ID	Whole Wall Thickness	Adhesive Thickness	(m/roll)	(m/pc)
1/4	φ6.0	6.0	1.27	1.26±0.30	0.50±0.30	100	—
5/16	φ8.0	8.0	1.65	1.70±0.30	0.75±0.30	100	—
1/2	φ12.0	12.0	2.41	2.10±0.30	0.95±0.30	—	1.22
3/4	φ18.0	18.0	4.45	2.60±0.30	1.30±0.30	—	1.22

Color: Standard color is black (other color available upon request).

Semi-rigid Irradiated Heat Shrinkable Polyolefin (PO) with Meltable Adhesive Liner 12.0mm Black

Product Tags:

heat shrink tube

heat shrinkable sleeves

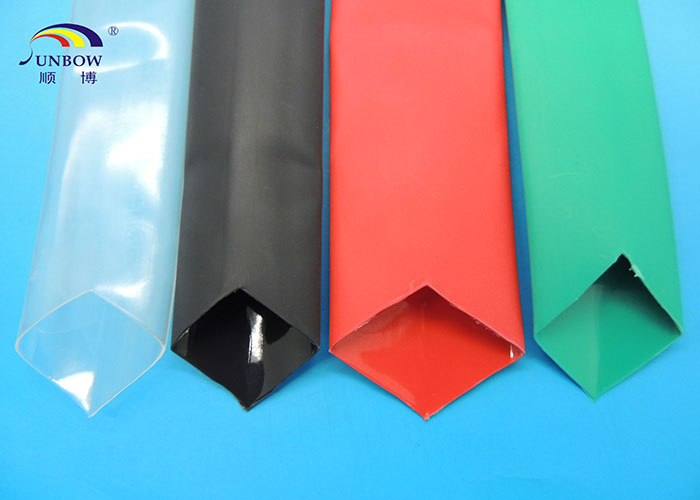

Polyolefin PO heat shrink sleeve with Meltable Adhesive Liner Images
