Flexible Polyolefin Heat Shrink Tubing , Meltable Liner heat shrinking tubing 12.7mm

Brand Name : Sunbow

Model Number : SB-SBRS-(3X)G

Certification : UL(UL No.: E360625), RoHS, Reach, ISO9001:2008, TS16949

Place of Origin : Shenzhen 518106, Guangdong, China

MOQ : 1000 meter

Price : US$0.148/M - US$14.182/M

Payment Terms : T/T, L/C, PayPal, D/A, D/P, West Union, MoneyGram

Supply Ability : 9000000 meter/year

Packaging Details : Sunbow Standard Package.

Product name : Flexible Heat Shrinkable Polyolefin Tubing with Meltable Liner 12.7mm Black

Working temperature : -45C - 125C

Shrink temperature : 70C - 125C

Shrink ratio : 3:1

Size : 2.4mm - 125.0mm

Color : Black, white, red, yellow, green, blue

Property : Insulation, flame retardant, waterproof, sealing

Application : Automobile wire harness, marine wire harness, breakout.

Contact Now

Flexible Polyolefin Heat Shrink Tubing , Meltable Liner heat shrinking tubing 12.7mm

Model Number: SB-SBRS-(3X)G

Working temperature: -45ºC ~ 125ºC

Shrink temperature: 70ºC ~ 125ºC

Shrink ratio: 3:1

Structure:

Flexible Heat Shrinkable Polyolefin Tubing with Meltable Liner 12.7mm Black adopts flame retardant, cross-linked polyolefin with an inner coating of hot-melt adhesive and outer layer that shrinks to provide electrical and mechanical protection. The outer layer has excellent insulation, wear and corrosion resistant performances. Inner layer has the excellence of low melt point and waterproof etc. It has passed UL, RoHS, Reach certifications with 600V and 300V.

Usage:

Flexible Heat Shrinkable Polyolefin Tubing with Meltable Liner 12.7mm Black with environmental sealing capability for a wide variety of electrical applications, including automotive and marine wire harness, wire spices, breakouts, and connector-to-cable transitions.

Standards:

Production standards: UL224, CAN/CSA C22.2 NO198.1-99, SAE-AMS-DTL-23053/4

Dimension:

Inner Diameter

As Supplied(mm)

ID

 After Recovery(mm)

Standard Package

(m/roll)
(mm) (inch) ID Whole Wall Thickness Adhesive Thickness
Φ2.4 3/32 ≥2.4 ≤0.80 0.85±0.15 0.40±0.10 200
Φ3.2 1/8 ≥3.2 ≤1.00 0.95±0.15 0.40±0.10 200
Φ4.8 3/16 ≥4.8 ≤1.60 1.10±0.15 0.40±0.10 100
Φ6.4 1/4 ≥6.4 ≤2.20 1.20±0.15 0.45±0.10 100
Φ7.9 5/16 ≥7.9 ≤2.70 1.35±0.15 0.50±0.10 100
Φ9.5 3/8 ≥9.5 ≤3.20 1.45±0.20 0.50±0.15 50
Φ12.7 1/2 ≥12.7 ≤4.20 1.70±0.20 0.50±0.15 1.22
Φ15.0 5/8 ≥15.0 ≤5.20 1.80±0.20 0.55±0.15 1.22
Φ19.1 3/4 ≥19.1 ≤6.30 2.00±0.20 0.55±0.15 1.22
Φ25.4 1 ≥25.4 ≤8.50 2.10±0.25 0.55±0.15 1.22
Φ30.0 1-1/4 ≥30.0 ≤10.20 2.20±0.25 0.60±0.15 1.22
Φ39.0 1-1/2 ≥39.0 ≤13.50 2.40±0.25 0.60±0.15 1.22
Φ50.0 2 ≥50.0 ≤17.00 2.70±0.25 0.80±0.15 1.22
Φ64.0 2-1/2 ≥64.0 ≤21.00 3.00±0.30 0.80±0.20 1.22
Φ76.0 3 ≥76.0 ≤25.00 3.00±0.30 1.00±0.20 1.22
Φ90.0 3-1/2 ≥90.0 ≤30.00 3.00±0.30 1.00±0.20 1.22
Φ100 4 ≥100 ≤34.00 3.00±0.30 1.00±0.20 1.22
Φ125 5 ≥125 ≤42.00 3.00±0.30 1.00±0.15 1.22

Hot Melt Adhesive Property:

Property Test Method Standard
Water Absorption ASTM D570 ≤0.2%
Softening Point ASTM E8 95℃
Strength of Pearing(PE) ASTM D 1000 120N/25mm
Strength of Pearing(AL) ASTM D 1000 80N/25mm

Technical Data:

Property Test Method Standard
Tensile Strength(MPa) ASTM D2671 ≥10.4
Elongation ASTM D2671 ≥300
Tensile Strength after Aging(MPa) UL224 158℃*168hrs ≥7.3
Elongation after Aging(MPa) UL224 158℃*168hrs ≥200
Dielectric Strength(KV/MM) IEC243 ≥15
Volume Resistivity(Ω.cm) ASTM D876 ≥1*1014

Color: Standard color is black (other color available upon request).

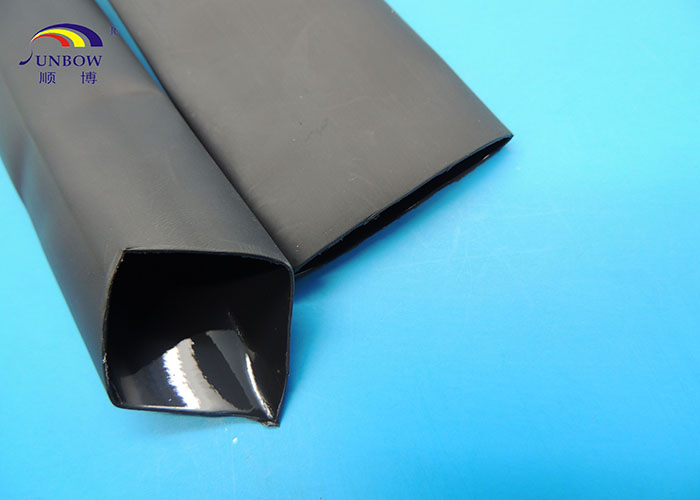

Flexible Heat Shrinkable Polyolefin Tubing with Meltable Liner 12.7mm Black

Flexible Polyolefin Heat Shrink Tubing , Meltable Liner heat shrinking tubing 12.7mmFlexible Polyolefin Heat Shrink Tubing , Meltable Liner heat shrinking tubing 12.7mmFlexible Polyolefin Heat Shrink Tubing , Meltable Liner heat shrinking tubing 12.7mm
