Rohs compliant Heat shrink custom pvc pipe for battery protecttion
1. Description of goods
PVC heat shrinkable tubing is produced with excellent and environmental protective PVC colloidal particle, treated by evaporation,then extruded to tubing when heated up and liquated by extruding machine, and coiling packed after cooling.
Operating temperature:-40℃~105℃
2. Characteristics
1). Flexibility, mechanical and dielectric capability, flame resistance, low temperature shrinkage etc;
2). Tensile strength: ≥4000Pa/ square metres ;
3). Shrink ratio: 1.7:1
4). Operating temperature:-40℃~105℃;
5). Environmental protection standard: ROHS;
6). Standard color: Blue color .
3. Range of application
It is widely applied in outside insulating protection of outgoing wires of electrical appliances, motors, sensors and transformers, bunchy wires and electronic components, gaseous and liquid pipelines, etc.

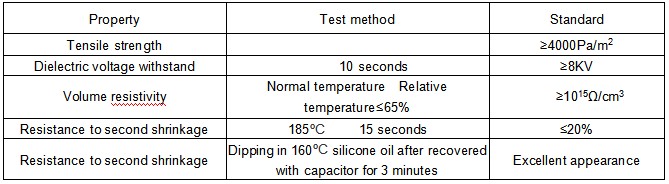

4. Specification
5. Dimension
| No | Size(mm) | Flat width(mm) |
| | | |
| 1 | ￠2.8 | 4.7±0.5 |
| 2 | ￠3.2 | 5.5±0.5 |
| 3 | ￠4.0 | 7.0±0.5 |
| 4 | ￠5.0 | 8.7±0.4 |
| 5 | | 9.0±0.4 |
| 6 | | 9.3±0.4 |
| 7 | ￠6.0 | 10.5±0.4 |
| 8 | | 10.8±0.4 |
| 9 | | 11.0±0.4 |
| 10 | ￠7.0 | 12.2±0.5 |
| 11 | ￠8.0 | 13.5±0.5 |
| 12 | | 13.8±0.5 |
| 13 | | 14.1±0.5 |
| 14 | ￠9.0 | 15.3±0.5 |
| 15 | ￠10 | 16.5±0.5 |
| 16 | | 16.8±0.5 |
| 17 | | 17.1±0.5 |
| 18 | ￠11 | 18.0±1.0 |
| 19 | ￠12 | 20.0±1.0 |
| 20 | ￠12.5 | 21.0±1.0 |
| 21 | ￠13 | 21.5±1.0 |
| 22 | ￠13.5 | 22.5±1.0 |
| 23 | ￠14 | 23.5±1.0 |
| 24 | ￠14.5 | 24.0±1.0 |
| 25 | ￠15 | 24.5±1.0 |
| 26 | ￠16 | 26.5±0.5 |
| 27 | | 27.0±0.5 |
| 28 | ￠16.5 | 27.5±1.0 |
| 29 | ￠17 | 28.0±1.0 |
| 30 | ￠18 | 29.5±1.0 |
| 31 | ￠19 | 31.0±1.0 |
| 32 | ￠20 | 32.5±1.0 |
| 33 | ￠21 | 34.0±1.0 |
| 34 | ￠22 | 35.5±1.0 |
| 35 | ￠23 | 36.5±1.0 |
| 36 | ￠24 | 39.0±1.0 |
| 37 | ￠25 | 41.0±1.0 |
| 38 | ￠25.4 | 41.5±1.0 |
| 39 | ￠26 | 43.5±1.0 |
| 40 | ￠27 | 45.0±1.0 |
| 41 | ￠28 | 46.5±1.0 |
| 42 | ￠29 | 48.5±1.5 |
| 43 | ￠30 | 50.0±1.5 |
| 44 | ￠33 | 52.0±1.5 |
| 45 | ￠34 | 56.5±1.5 |
| 46 | ￠35 | 58.0±1.5 |
| 47 | ￠38 | 63.5±1.5 |
| 48 | ￠40 | 65.0±2.0 |
| 49 | ￠42 | 69.0±2.0 |
| 50 | ￠45 | 72.5±2.0 |
| 51 | ￠46 | 74.0±2.0 |
| 52 | ￠48 | 77.5±2.0 |
| 53 | ￠50 | 82.0±2.0 |
| 54 | ￠55 | 90.0±2.0 |
| 55 | ￠60 | 97.0±2.0 |
| 56 | ￠65 | 106.0±2.0 |
| 57 | ￠70 | 112.0±2.0 |
| 58 | ￠75 | 122.0±2.0 |
| 59 | ￠80 | 131.0±2.0 |
| 60 | ￠85 | 135.0±2.0 |
| 61 | ￠93 | 143.0±2.0 |
| 62 | ￠95 | 150.0±3.0 |
| 63 | ￠103 | 160.0±3.0 |
| 64 | ￠109 | 167.0±3.0 |
| 65 | ￠116 | 178.0±3.0 |
| 66 | ￠130 | 198.0±4.0 |
| 67 | ￠142 | 218.0±4.0 |
| 68 | ￠154 | 238.0±4.0 |
| 69 | ￠161 | 248.0±4.0 |
| 70 | ￠167 | 258.0±4.0 |
| 71 | ￠180 | 278.0±4.0 |
| 72 | ￠190 | 294.0±4.0 |
| 73 | ￠200-￠250 |
Remark:
Flat width ≤70mm, wall thickness 0.05mm
Flat width ≥70mm, wall thickness 0.08mm
Flat width ≤ 300mm, the max wall thickness 0.2mm
300mm≤ Flat width ≤400mm, the max wall thickness 0.15mm
Flat width ≥ 400mm, the max wall thickness 0.12mm
Other size can be customized.
6. Color:
All color is available.
7. Pictures of goods
8. Our Services
1). 5~7 quick time production;
2). One year quality guarantee;
3). Prompt feedback;
4). 24 hours on line service.
5). Free sample for your approval
6). OEM production
7). ODM ability
8). OEM package
9. FAQ
Q : Are you a factory or trading company ?
A: We are a factory, can offer best quality product and reasonable price for you
Q: Can you accept sample order?
A: Yes, we accept samples with little and reasonable charge.
Q: What is your MOQ?
A: Normally, 2000 Meter per color.
Q:What is your delivery time?Can we short it in 7 days or less?
A: 3 days for sample, 3-20 days for mass production. (depend quantity)
Q: What is your payment terms?
A: T/T, Western Union, L/C
Q: How can I get my order?How can I know you sent the goods.
A: We will send you the goods by UPS, DHL, Fedex, Oversea Shipment or other forwarder, all with tracking number.
Q:How about your quality?
A: Try a small order, you will have your judgement!
