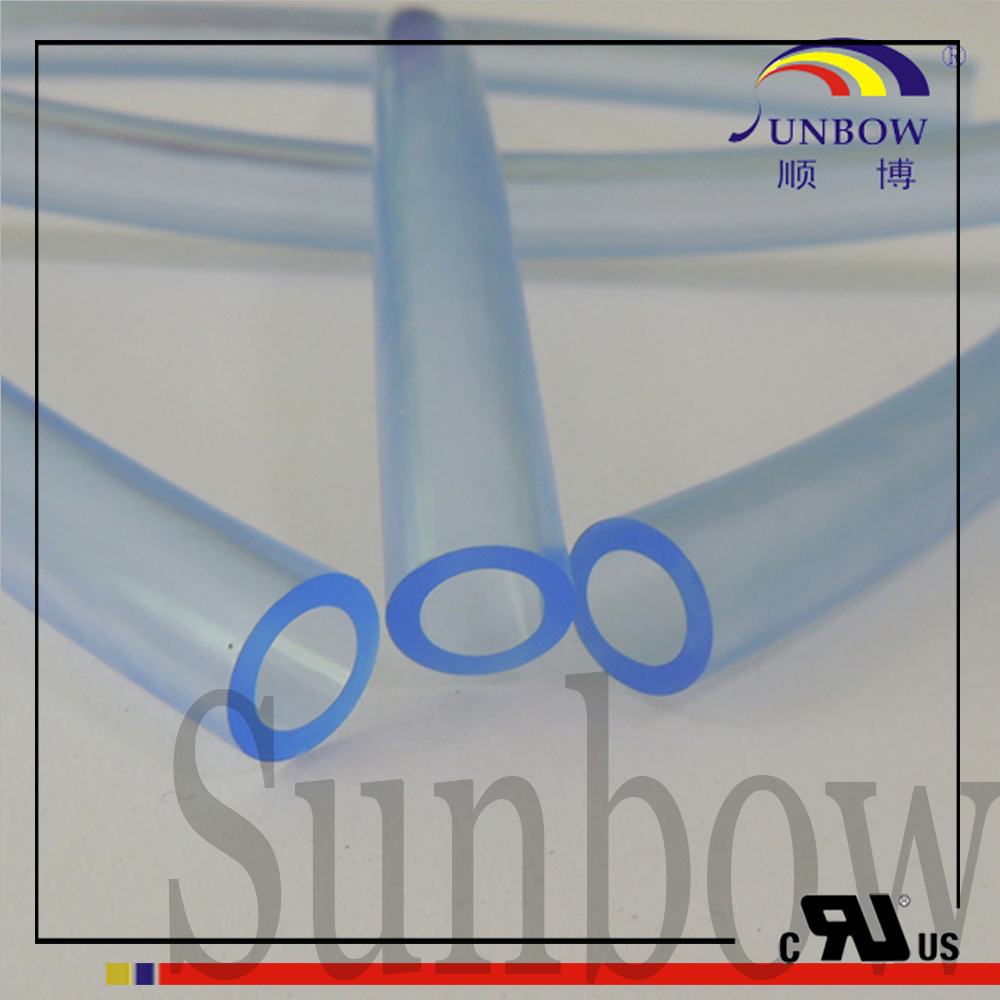

SUNBOW PVC Polyvinylchloride 1/8 in pvc hose vinyl tubing

Product Categories
Shenzhen Sunbow Insulation Materials MFG. CO., LTD
Contact Now

SUNBOW PVC Polyvinylchloride 1/8 in pvc hose vinyl tubing

  • 1
  • 2

Brand Name : SUNBOW

Model Number : SB-PVC

Certification : UL, ROHS, REACH

Place of Origin : Shenzhen, China

MOQ : 2000meters

Price : 0.01-0.99USD/M

Payment Terms : L/C, T/T, Paypal

Supply Ability : 200000meters/week

Delivery Time : 7-10 work days

Packaging Details : Packing by rolls, then rolls by carton.

Product Name : Flexible PVC tube

Model : SB-PVC

Working temperature : -30-105C

Resistant Voltage : 300V or 600V

Size : 0.8-30MM

Tensile Strength : 10.4 Mpa

Application : Wire harness, Electronic components

Contact Now

SUNBOW PVC Polyvinylchloride 1/8 in pvc hose vinyl tubing

Product Description

GRADE:SB-PVC
Working temperature:-30°C~+105°C

STRUCTURE

PVC tubing is produced with superior and environmentally friendly polyvinyl colloidal particle, after drying,

extruded to tubing when heated up and liquated, then packing in rolls after cooling.

SUNBOW PVC Polyvinylchloride 1/8 in pvc hose vinyl tubing

USAGE

With the excellent flexibility, mechanical and dielectric capability, flame resistance performance, PVC tubing

is widely used in outside insulation protection of outgoing wires of electrical appliances, transformers, electrical

motors or lighting equipment, and electronic components, wire harness and etc.

SPECIFICATION

Item Unit Test Method Numerical Value
SB-300 SB-600
Voltage rating V 300 600
Temperature rating °C UL224 105
Voltage resistance Before aging UL224 23°C 2500V/60sec
After aging UL224 136°C 168hr 2500V/60sec
Volume resistivity Ωcm UL224 ≥1010
Tensile strength Before aging Mpa UL224 23°C ≥10.4
After aging Mpa UL224 136°C 168hr ≥7.3
Elongation Before aging % UL224 23°C ≥100%
After aging % UL224 136°C 168hr ≥100%
Flexibility UL224 136°C 168hr No cracking
Heat shock UL224 180°C 4hr No cracking
Cold bend UL224 -30°C 1hr No cracking
Copper stability UL224 136°C 168hr No corrosion
Flame resistance UL224 VW-1

DIMENSION

SUNBOW PVC Polyvinylchloride 1/8 in pvc hose vinyl tubing

SUNBOW PVC Polyvinylchloride 1/8 in pvc hose vinyl tubing

SUNBOW PVC Polyvinylchloride 1/8 in pvc hose vinyl tubing

SUNBOW PVC Polyvinylchloride 1/8 in pvc hose vinyl tubing

SUNBOW PVC Polyvinylchloride 1/8 in pvc hose vinyl tubing
