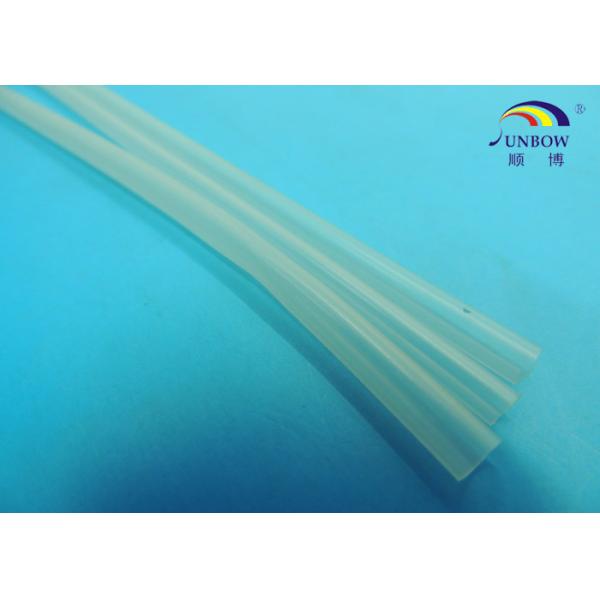

FDA grade 0.8 - 30mm high temperature silicone rubber tube
Model Number: SB-SRT
Usage
Silicone rubber tubing with service temperature -30ºC to 250ºC. They are commonly applied in contact
with foods in accordance with provisions of FDA 21 CFR 177.2600 and in electric insulation. It can be
installed in coffee maker, water dispenser. electric water bottle, car wire hardness, or used in electric insulation etc.
Specification
| Performance | Test method | Performance index |
| Dielectric strength (kv/mm) | GB/T 1048 | ≥18 |
| Volume resistivity (Ω/cm) | GB/T 1410 | ≥1x1014 |
| Tearing strength (MPa) | GB/T 1040 | ≥3.5 MPa |
| Elongation (%) | GB/T 1040 | ≥210 |
| Fire resistance(flame retarded products) | GB/T 2408 | FV-1 |
Dimension of FDA grade 0.8 - 30mm high temperature silicone rubber tube
| Size | Tolerance(mm) | Thickness and tolerance |
| | | 2500V(mm) | 4000V(mm) | 6000V(mm) | 7000V(mm) |
| φ0.8 | 0.8±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ1.0 | 1.0±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ1.5 | 1.5±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ2.0 | 2.0±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ2.5 | 2.5±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ3.0 | 3.0±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ3.5 | 3.5±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ4.0 | 4.0±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ4.5 | 4.5±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ5.0 | 5.0±0.20 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ5.5 | 5.5±0.20 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ6.0 | 6.0±0.20 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ6.5 | 6.5±0.20 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ7.0 | 7.0±0.20 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ7.5 | 7.5±0.20 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ8.0 | 8.0±0.25 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ9.0 | 9.0±0.25 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ10.0 | 10.0±0.25 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ11.0 | 11.0±0.30 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ12.0 | 12.0±0.30 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ13.0 | 13.0±0.30 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ14.0 | 14.0±0.30 | — | — | 1.50±0.20 | 2.00±0.25 |
| φ15.0 | 15.0±0.30 | — | — | 1.50±0.20 | 2.00±0.25 |
| φ20.0 | 20.0±0.30 | — | — | — | 2.50±0.3 |
Note: Default color is clear, other color can be customized upon request.
Competitive point of SUNBOW,
1) ISO 9001 : 2008 factory manufacturer,
2) high-tech enterprise and TS 16949 standard in China,
3) 12-year manufacturing experience,
4) factory direct sales and stardard after-sales service procedure,
5) best price high quality product,
6) quick delivery time for sample or formal orders,
7) quick response for feedback in email or calls,
8) few complaints from customers,
9) more competitive price for VIP customers,
10) convenient situation near to Shenzhen seaport,
11) flame resistant tube is available.
