3:1 Flexible Dual Wall Adhesive Lined Heat Shrink Polyolefin Tubing for Marine Wire Harness

Name: 31 Flexible Dual Wall Adhesive Lined Heat Shrink Polyolefin Tubing for Marine Wire Harness
Brand: Sunbow
Price: 0.16 USD

Wholesale 3:1 Flexible Dual Wall Adhesive Lined Heat Shrink Polyolefin Tubing for Marine Wire Harness from china suppliers

Brand Name : Sunbow

Model Number : SB-SBRS-3XG

Certification : UL(UL No.: E360625), RoHS, Reach, ISO9001, TS16949

Place of Origin : Shenzhen/Guangdong/China

MOQ : 1000M per color per size

Price : USD0.16 ~ 14.18 per meter.

Payment Terms : T/T, PayPal.

Supply Ability : 9000000 meters per year.

Delivery Time : 5 ~ 10 working days.

Packaging Details : 2.4mm ~ 3.2mm, 200 meter/roll; 4.6mm ~ 7.9mm, 100 meter/roll; 9.5mm, 50 meter/roll; 12.7mm ~ 125.0mm, 1.22 m/pc.

Product name : 3:1 Dual Wall Adhesive-Lined Heat-Shrink Polyolefin Tubing for Automotive and Marine Wire Harness

Working temperature : -45ºC ~ 125ºC

Shrink temperature : 70ºC ~ 125ºC

Shrink ratio : 3:1

Property : Insulation, flame retardant, waterproof, flexible

Size range : 2.4mm ~ 125.0mm

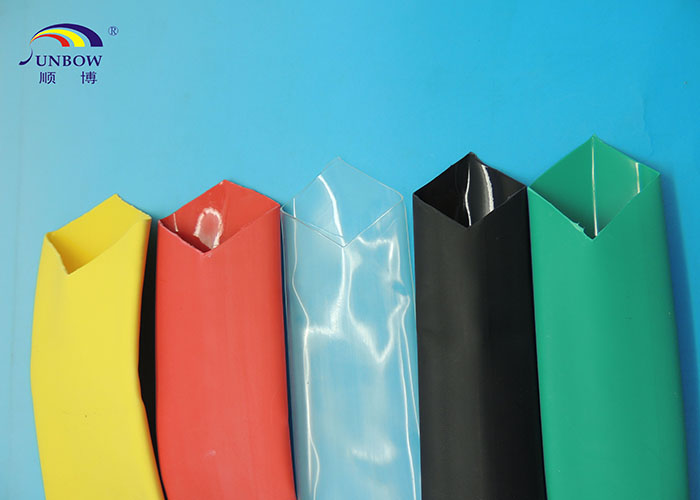

Color : Black, white, red, yellow, green, blue.

Application : For automotive and marine wire harness, wire spices, breakouts, and connector-to-cable transitions.

Contact Now

3:1 Dual Wall Adhesive-Lined Heat-Shrink Polyolefin Tubing for Automotive and Marine Wire Harness

Product description: 3:1 Dual Wall Adhesive-Lined Heat-Shrink Polyolefin Tubing for Automotive and Marine Wire Harness

3:1 Dual Wall Adhesive-Lined Heat-Shrink Polyolefin Tubing for Automotive and Marine Wire Harness adopts flame retardant, cross-linked polyolefin with an inner coating of hot-melt adhesive and outer layer that shrinks to provide electrical and mechanical protection. The outer layer has excellent insulation, wear and corrosion resistant performances. Inner layer has the excellence of low melt point and waterproof etc. It has passed UL, RoHS, Reach certifications with 600V and 300V.

Application: 3:1 Dual Wall Adhesive-Lined Heat-Shrink Polyolefin Tubing for Automotive and Marine Wire Harness

3:1 Dual Wall Adhesive-Lined Heat-Shrink Polyolefin Tubing for Automotive and Marine Wire Harness with environmental sealing capability for a wide variety of electrical applications, including automotive and marine wire harness, wire spices, breakouts, and connector-to-cable transitions.

Dimension: 3:1 Dual Wall Adhesive-Lined Heat-Shrink Polyolefin Tubing for Automotive and Marine Wire Harness

Inner Diameter		As Supplied(mm) ID	After Recovery(mm)			Standard Package (m/roll)
(mm)	(inch)		ID	Whole Wall Thickness	Adhesive Thickness
Φ2.4	3/32	≥2.4	≤0.80	0.85±0.15	0.40±0.10	200
Φ3.2	1/8	≥3.2	≤1.00	0.95±0.15	0.40±0.10	200
Φ4.8	3/16	≥4.8	≤1.60	1.10±0.15	0.40±0.10	100
Φ6.4	1/4	≥6.4	≤2.20	1.20±0.15	0.45±0.10	100
Φ7.9	5/16	≥7.9	≤2.70	1.35±0.15	0.50±0.10	100
Φ9.5	3/8	≥9.5	≤3.20	1.45±0.20	0.50±0.15	50
Φ12.7	1/2	≥12.7	≤4.20	1.70±0.20	0.50±0.15	1.22
Φ15.0	5/8	≥15.0	≤5.20	1.80±0.20	0.55±0.15	1.22
Φ19.1	3/4	≥19.1	≤6.30	2.00±0.20	0.55±0.15	1.22
Φ25.4	1	≥25.4	≤8.50	2.10±0.25	0.55±0.15	1.22
Φ30.0	1-1/4	≥30.0	≤10.20	2.20±0.25	0.60±0.15	1.22
Φ39.0	1-1/2	≥39.0	≤13.50	2.40±0.25	0.60±0.15	1.22
Φ50.0	2	≥50.0	≤17.00	2.70±0.25	0.80±0.15	1.22
Φ64.0	2-1/2	≥64.0	≤21.00	3.00±0.30	0.80±0.20	1.22
Φ76.0	3	≥76.0	≤25.00	3.00±0.30	1.00±0.20	1.22
Φ90.0	3-1/2	≥90.0	≤30.00	3.00±0.30	1.00±0.20	1.22
Φ100	4	≥100	≤34.00	3.00±0.30	1.00±0.20	1.22
Φ125	5	≥125	≤42.00	3.00±0.30	1.00±0.15	1.22

Technical data: 3:1 Dual Wall Adhesive-Lined Heat-Shrink Polyolefin Tubing for Automotive and Marine Wire Harness

Property	Test Method	Standard
Tensile Strength(MPa)	ASTM D2671	≥10.4
Elongation	ASTM D2671	≥300
Tensile Strength after Aging(MPa)	UL224 158℃*168hrs	≥7.3
Elongation after Aging(MPa)	UL224 158℃*168hrs	≥200
Dielectric Strength(KV/MM)	IEC243	≥15
Volume Resistivity(Ω.cm)	ASTM D876	≥1*10¹⁴

Hot melt adhesive property: 3:1 Dual Wall Adhesive-Lined Heat-Shrink Polyolefin Tubing for Automotive and Marine Wire Harness

Property	Test Method	Standard
Water Absorption	ASTM D570	≤0.2%
Softening Point	ASTM E8	95℃
Strength of Pearing(PE)	ASTM D 1000	120N/25mm
Strength of Pearing(AL)	ASTM D 1000	80N/25mm

Color: Standard color is black (other color available upon request).

Our services: 3:1 Dual Wall Adhesive-Lined Heat-Shrink Polyolefin Tubing for Automotive and Marine Wire Harness

3:1 Flexible Dual Wall Adhesive Lined Heat Shrink Polyolefin Tubing for Marine Wire Harness

3:1 Dual Wall Adhesive-Lined Heat-Shrink Polyolefin Tubing for Automotive and Marine Wire Harness
