Dual Wall Adhesive-Lined Polyolefin Heat Shrink Tubing Heat Shrink Tube

Brand Name : Sunbow

Model Number : SB-SBRS-3XG

Certification : UL(UL No.: E360625), RoHS, Reach, ISO9001, TS16949

Place of Origin : Shenzhen, Guangdong, China

MOQ : 500 meter

Price : US$0.169 - 14.182 per meter.

Payment Terms : T/T, PayPal

Supply Ability : 9000000 meter per year

Delivery Time : 5 - 8 working days

Packaging Details : 2.4mm - 3.2mm, 200 meter/spool; 4.8mm - 7.9mm, 100 meter/spool; 9.5mm, 50 meter/spool; 12.7mm - 125.0mm, 1.22 meter/piece.

Product name : Dual Wall Adhesive-Lined Polyolefin Heat Shrink Tubing Heat Shrink Tube

Working temperature : -45C - 125C

Shrink temperature : 70C - 125C

Shrink ratio : 3:1

Size : 1/8" - 5"

Color : Black, red, yellow, green, blue, clear

Property : Insulation, flame retardant, eco-friendly, waterproof

Application : Automotive and marine wire harness, wire splices, breakouts, connector-to-cable transitions

Contact Now

Dual Wall Adhesive-Lined Polyolefin Heat Shrink Tubing Heat Shrink Tube

Model number:SB-SBRS-3XG

Product description:

Dual Wall Adhesive-Lined Polyolefin Heat Shrink Tubing Heat Shrink Tube adopts flame retardant, cross-linked polyolefin with an inner coating of hot-melt adhesive and outer layer that shrinks to provide electrical and mechanical protection. The outer layer has excellent insulation, wear and corrosion resistant performances. Inner layer has the excellence of low melt point and waterproof etc. It has passed UL, RoHS, Reach certifications with 600V and 300V.

Product application:

Dual Wall Adhesive-Lined Polyolefin Heat Shrink Tubing Heat Shrink Tube with environmental sealing capability for a wide variety of electrical applications, including automotive and marine wire harness, wire spices, breakouts, and connector-to-cable transitions.

Property:

1. 3:1 shrink ratio

2. longitudinal shrink 8% max

3. out jacket flame retardant

4. super sealing against water, moisture or other contaminants

5. continuous operating temperature: -45C - 125C

6. shrink temperature: 70C - 125C

Technical data:

Property Test Method Standard
Tensile Strength(MPa) ASTM D2671 ≥10.4
Elongation ASTM D2671 ≥300
Tensile Strength after Aging(MPa) UL224 158℃*168hrs ≥7.3
Elongation after Aging(MPa) UL224 158℃*168hrs ≥200
Dielectric Strength(KV/MM) IEC243 ≥15
Volume Resistivity(Ω.cm) ASTM D876 ≥1*1014

Hot melt adhesive property:

Property Test Method Standard
Water Absorption ASTM D570 ≤0.2%
Softening Point ASTM E8 95℃
Strength of Pearing(PE) ASTM D 1000 120N/25mm
Strength of Pearing(AL) ASTM D 1000 80N/25mm

Dimension:

Inner Diameter

As Supplied(mm)

ID

 After Recovery(mm)

Standard Package

(m/roll)
(mm) (inch) ID Whole Wall Thickness Adhesive Thickness
Φ2.4 3/32 ≥2.4 ≤0.80 0.85±0.15 0.40±0.10 200
Φ3.2 1/8 ≥3.2 ≤1.00 0.95±0.15 0.40±0.10 200
Φ4.8 3/16 ≥4.8 ≤1.60 1.10±0.15 0.40±0.10 100
Φ6.4 1/4 ≥6.4 ≤2.20 1.20±0.15 0.45±0.10 100
Φ7.9 5/16 ≥7.9 ≤2.70 1.35±0.15 0.50±0.10 100
Φ9.5 3/8 ≥9.5 ≤3.20 1.45±0.20 0.50±0.15 50
Φ12.7 1/2 ≥12.7 ≤4.20 1.70±0.20 0.50±0.15 1.22
Φ15.0 5/8 ≥15.0 ≤5.20 1.80±0.20 0.55±0.15 1.22
Φ19.1 3/4 ≥19.1 ≤6.30 2.00±0.20 0.55±0.15 1.22
Φ25.4 1 ≥25.4 ≤8.50 2.10±0.25 0.55±0.15 1.22
Φ30.0 1-1/4 ≥30.0 ≤10.20 2.20±0.25 0.60±0.15 1.22
Φ39.0 1-1/2 ≥39.0 ≤13.50 2.40±0.25 0.60±0.15 1.22
Φ50.0 2 ≥50.0 ≤17.00 2.70±0.25 0.80±0.15 1.22
Φ64.0 2-1/2 ≥64.0 ≤21.00 3.00±0.30 0.80±0.20 1.22
Φ76.0 3 ≥76.0 ≤25.00 3.00±0.30 1.00±0.20 1.22
Φ90.0 3-1/2 ≥90.0 ≤30.00 3.00±0.30 1.00±0.20 1.22
Φ100 4 ≥100 ≤34.00 3.00±0.30 1.00±0.20 1.22
Φ125 5 ≥125 ≤42.00 3.00±0.30 1.00±0.15 1.22

Color: black, red, yellow, green, blue, clear.

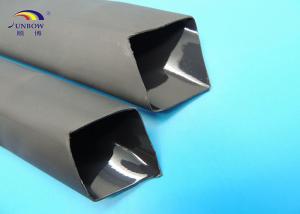

Dual Wall Adhesive-Lined Polyolefin Heat Shrink Tubing Heat Shrink Tube

Dual Wall Adhesive-Lined Polyolefin Heat Shrink Tubing Heat Shrink TubeDual Wall Adhesive-Lined Polyolefin Heat Shrink Tubing Heat Shrink TubeDual Wall Adhesive-Lined Polyolefin Heat Shrink Tubing Heat Shrink Tube
