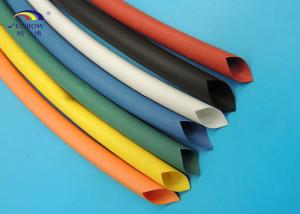

UL Listed Flame Retardant Polyolefin Heat Shrink Tubing Heat Shrinkable Tube

Brand Name : Sunbow

Model Number : SB-RSFR-125H

Certification : UL(UL No.: E360625), RoHS, Reach, ISO9001, TS16949

Place of Origin : Shenzhen, Guangdong, China

MOQ : 2000 meter

Price : US$0.045 - 15.298 per meter

Payment Terms : T/T, PayPal

Supply Ability : 9000000 meter per year

Delivery Time : 5 - 8 working days

Packaging Details : 0.5mm - 4.0mm, 400 meter/spool; 4.5mm - 6.0mm, 200 meter/spool; 7.0mm - 22.0mm, 100 meter/spool; 25.0mm - 40.0mm, 50 meter/spool; 45.0mm - 280.0mm, 25 meter/spool. SUNBOW Box Size: 31*31*44.5cm.

Product name : UL Listed Flame Retardant Polyolefin Heat Shrink Tubing Heat Shrinkable Tube

Working temperature : -45C ~ 125C

Shrink temperature : 84C ~ 120C

Shrink ratio : 2:1

Property : Insulation, flame retardant, flexible, eco-friendly, quick shrink

Application : Cable management, PC cable, wiring harness, transformers

Size : 0.5mm ~ 280.0mm

Color : Black, white, red, yellow, green, blue

Contact Now

UL Listed Flame Retardant Polyolefin Heat Shrink Tubing Heat Shrinkable Tube

Product description:

UL Listed Flame Retardant Polyolefin Heat Shrink Tubing Heat Shrinkable Tube is made of eco-friendly cross-linking polyolefin material under irradiation. It has environment-friendly, flexible, flame retardant, quick shrink and stable performances. Also, it has electrical insulation, welding point anticorrosion and antirust and mechanical performances. It has passed UL, RoHS, Reach certifications for 300V and 600V.

Feature:

1. flexible

2. zero halogen

3. flame retardant

4. low smoke generation if burning

5. continuous operating temperature: -45C - 125C

6. shrink temperature: 84C - 120C

7. RoHS compliant

8. insulation, soft, quick shrink, stable performance

Dimension:

Inner

Diameter

 As Supplied(mm) After Recovery(mm) Standard Package Application Range(mm)
Inner Diameter Wall Thickness Inner Diameter Wall Thickness (m/spool)
Φ0.6 0.9±0.2 0.20±0.05 ≤0.40 0.33±0.10 400 0.4~0.7
Φ0.8 1.1±0.2 0.20±0.05 ≤0.50 0.33±0.10 400 0.6~0.8
Φ1.0 1.5±0.2 0.20±0.05 ≤0.65 0.36±0.10 400 0.75~0.9
Φ1.5 2.0±0.2 0.20±0.05 ≤0.85 0.36±0.10 400 0.95~1.4
Φ2.0 2.5±0.2 0.23±0.05 ≤1.00 0.45±0.10 400 1.1~1.8
Φ2.5 3.0±0.2 0.23±0.05 ≤1.30 0.45±0.10 400 1.35~2.3
Φ3.0 3.5±0.2 0.23±0.05 ≤1.50 0.45±0.10 400 1.6~2.7
Φ3.5 4.0±0.2 0.23±0.05 ≤1.80 0.45±0.10 400 1.85~3.2
Φ4.0 4.5±0.2 0.25±0.05 ≤2.00 0.45±0.10 400 2.1~3.6
Φ4.5 5.0±0.2 0.28±0.05 ≤2.30 0.56±0.10 200 2.35~4.0
Φ5.0 5.5±0.2 0.28±0.05 ≤2.50 0.56±0.10 200 2.6~4.5
Φ6.0 6.5±0.2 0.28±0.05 ≤3.00 0.56±0.10 200 3.1~5.4
Φ7.0 7.5±0.3 0.28±0.05 ≤3.50 0.56±0.10 100 3.7~6.3
Φ8.0 8.5±0.3 0.30±0.08 ≤4.00 0.56±0.10 100 4.2~7.2
Φ9.0 9.5±0.3 0.30±0.08 ≤4.50 0.56±0.10 100 4.7~8.0
Φ10 10.5±0.3 0.30±0.08 ≤5.00 0.56±0.10 100 5.2~9.0
Φ11 11.5±0.3 0.30±0.08 ≤5.50 0.56±0.10 100 5.7~10
Φ12 12.5±0.3 0.30±0.08 ≤6.00 0.56±0.10 100 6.2~11
Φ13 13.5±0.3 0.30±0.08 ≤6.50 0.56±0.10 100 6.7~12
Φ14 14.5±0.3 0.35±0.10 ≤7.00 0.70±0.10 100 7.3~13
Φ15 15.5±0.4 0.35±0.10 ≤7.50 0.70±0.10 100 7.8~14
Φ16 16.5±0.4 0.35±0.10 ≤8.00 0.70±0.10 100 8.3~15
Φ17 17.5±0.4 0.35±0.10 ≤8.50 0.70±0.10 100 8.8~16
Φ18 19.0±0.5 0.35±0.10 ≤9.00 0.70±0.10 100 9.3~17
Φ20 22.0±0.5 0.35±0.10 ≤10.00 0.83±0.15 100 10.4~19
Φ22 24.0±0.5 0.40±0.12 ≤11.00 0.83±0.15 100 11.4~21
Φ25 26.0±0.5 0.40±0.12 ≤12.50 0.90±0.15 50 12.8~24
Φ28 29.0±0.5 0.45±0.12 ≤14.00 0.90±0.15 50 14.4~29
Φ30 31.5±1.0 0.45±0.12 ≤15.00 1.00±0.15 50 16~29
Φ35 36.5±1.0 0.45±0.12 ≤17.50 1.00±0.15 50 18~34
Φ40 41.5±1.0 0.45±0.12 ≤20.00 1.00±0.15 50 21~39
Φ45 46.5±1.0 0.50±0.15 ≤22.5 1.00±0.15 25 23.5~44
Φ50 ≥50 0.50±0.15 ≤25.0 1.10±0.15 25 26~49
Φ60 ≥60 0.60±0.15 ≤30.0 1.20±0.15 25 35~55
Φ70 ≥70 0.65±0.15 ≤35.0 1.30±0.20 25 40~65
Φ80 ≥80 0.65±0.15 ≤40.0 1.30±0.20 25 45~75
Φ90 ≥90 0.65±0.15 ≤45.0 1.30±0.20 25 50~85
Φ100 ≥100 0.65±0.20 ≤50.0 1.30±0.20 25 55~95
Φ120 ≥120 0.65±0.20 ≤60.0 1.30±0.20 25 65~115
Φ150 ≥150 0.65±0.20 ≤70.0 1.30±0.20 25 80~145
Φ180 ≥180 0.65±0.30 ≤90.0 1.30±0.30 25 95~175
Φ210 ≥210 0.65±0.30 ≤105.0 1.30±0.30 25 110~205
Φ230 ≥230 0.65±0.30 ≤115.0 1.30±0.30 25 120~225
Φ250 ≥250 0.65±0.30 ≤125.0 1.30±0.30 25 130~240

Technical data:

Property Unit Test Method Standard
Tensile Strength MPA ≥10.4(Before Aging) GB/T 1040
≥7.3(After Aging) 158ºC*168hrs
Breakage Elongation (%) % ≥200(Before Aging) GB/T 1040
≥100(After Aging) 158ºC*168hrs
Heat Shock - No Sticking & No Cracking 250ºC*4hrs
Cold Blend - No Cracking -30ºC*4hrs
Breakdown Strength KV/mm ≥15 GB/T 1408
Dielectric Withstand 600V - Pass No Breakdown for 2500V, 60s
300V - Pass No Breakdown for 1500V,60s
Volume Resistivity Ω. cm ≥1×1014 GB/T 1410
Corrosion Performance - pass 158ºC*168hrs
Copper Stability - pass 158ºC*168hrs
Flammability - pass VW-1

Color: black, red, yellow, blue, green.

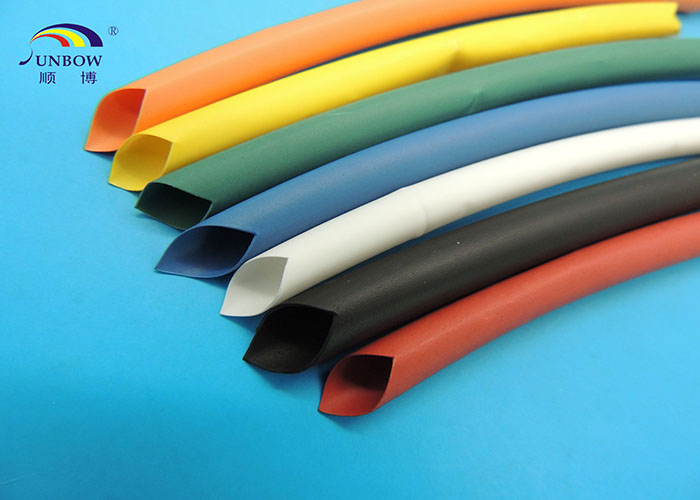

UL Listed Flame Retardant Polyolefin Heat Shrink Tubing Heat Shrinkable Tube

UL Listed Flame Retardant Polyolefin Heat Shrink Tubing Heat Shrinkable TubeUL Listed Flame Retardant Polyolefin Heat Shrink Tubing Heat Shrinkable TubeUL Listed Flame Retardant Polyolefin Heat Shrink Tubing Heat Shrinkable Tube
