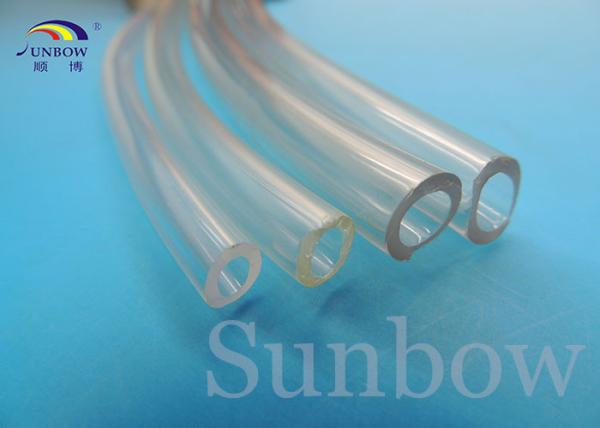

Flame retardant UL VW-1 soft Clear transparent PVC tubes

Brand Name : SUNBOW

Model Number : SB-PVC

Certification : UL, ROHS, REACH

Place of Origin : Shenzhen, Guangdong, China

MOQ : 2000 meters

Price : USD 0.01-9.99 /meter

Payment Terms : Western Union, L/C, T/T,Paypal

Supply Ability : 200000 meters per month

Delivery Time : 7

Packaging Details : Packing by rolls, then rolls by carton

Product name : clear PVC tube

materia : PVC

Color : Clear, other color available

Flamability : UL VW-1

Application : electrical components, wire harness

MOQ : 2000 meters

Size : ID 0.8-25MM

Working tempearature : -30 -105 degree

voltage : 300 V/ 600V

Packing : by rolls, rolls by carton

Contact Now

Flame retardant UL VW-1 soft Clear transparent PVC tubes

Model Number: SB-PVC

Working temperature: -30-105 degree

Structure

Pvc tubing is produced by superior and environmentally friendly polyvinyl colloidal particle,after drying,extruded to tubing when heated up and liquated,then packing in rolls after cooling.

Usage

The soft clear transparent PVC tube is Widely used in insulated or partially insulated conductors,bus bars,componet leads,or assemlies or electrical componets etc.

Specification

ITEM	PERFORMANCE	ITEM	PERFORMANCE
Continuous operating temperature	-20°C~105°C	Potential rating(V)	300V,600V
Tensile strength (Mpa)	≥10.4	Potential rating(V)	no breakdown
Ultimate elongation(%)	≥100	Corrosion of bare copper	NO Corrosion
Optional Flame	VW-1	Heat shock	NO Cracking
Aging in circulating air oven	7day at136.0±1.0°C	Cold bend	NO Cracking
After aging Tensile strength(Mpa)	≥7.28	Maximum longitudinal change	±5%
Ultimate elongation (%)	≥70

Dimension

AWG NO.	Inner Diameter(mm)	Wall Thickness (mm)		Standard Package m/roll
AWG NO.	Inner Diameter(mm)	SB-300	SB-600
24	0.55±0.1	0.25±0.05	0.40±0.05
22	0.65±0.1	0.25±0.05	0.40±0.05	305
20	0.85±0.1	0.25±0.05	0.40±0.05	305
19	0.9±0.1	0.30±0.05	0.40±0.05	305
18	1.0±0.15	0.30±0.05	0.45±0.05	305
17	1.2±0.15	0.30±0.05	0.45±0.05	305
16	1.3±0.15	0.30±0.05	0.45±0.05	305
15	1.5±0.15	0.30±0.05	0.45±0.05	305
14	1.7±0.15	0.30±0.05	0.45±0.05	305
13	1.9±0.2	0.30±0.05	0.45±0.05	305
12	2.1±0.2	0.35±0.05	0.50±0.05	305
11	2.4±0.2	0.35±0.05	0.50±0.05	305
10	2.7±0.2	0.35±0.05	0.50±0.05	305
9	3.0±0.2	0.40±0.05	0.50±0.05	305
8	3.3±0.2	0.40±0.05	0.50±0.05	305
7	3.7±0.2	0.40±0.05	0.50±0.05	305
6	4.2±0.3	0.45±0.05	0.50±0.05	305
5	4.7±0.3	0.45±0.05	0.55±0.05	305
4	5.3±0.3	0.45±0.05	0.55±0.05	305
3	5.9±0.3	0.45±0.05	0.55±0.05	152
2	6.6±0.3	0.45±0.05	0.55±0.05	152
1	7.4±0.35	0.45±0.05	0.55±0.05	152
0	8.3±0.35	0.45±0.05	0.55±0.05	152
