Welding Machine Protection Silicone Rubber Coated Fiberglass Sleeving

Name: Welding Machine Protection Silicone Rubber Coated Fiberglass Sleeving
Brand: SUNBOW
Price: 0.07 USD

Wholesale Welding Machine Protection Silicone Rubber Coated Fiberglass Sleeving from china suppliers

Brand Name : SUNBOW

Model Number : SB-SRS-70

Certification : UL, REACH, ROHS, ISO, TS

Place of Origin : Shenzhen China

MOQ : 1000 meters

Price : USD0.07-13.4 per meter

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000000000meter per month

Delivery Time : 7~12 working days

Packaging Details : Roll package or cut into length

Product Name : Welding machine protection Silicone Rubber fiberglass sleeving

Material : Silicone Rubber Inside, Braided Fiberglass Outside

Working Temp : 200 C

Breakdown Voltage : 7.0KV

Size Range : 0.8~18mm

Color : White, Black, Red, Yellow etc

Contact Now

Welding machine protection Silicone Rubber fiberglass sleeving

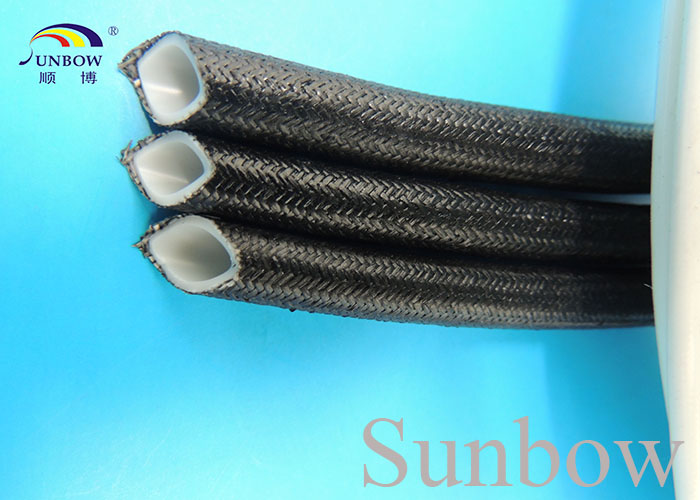

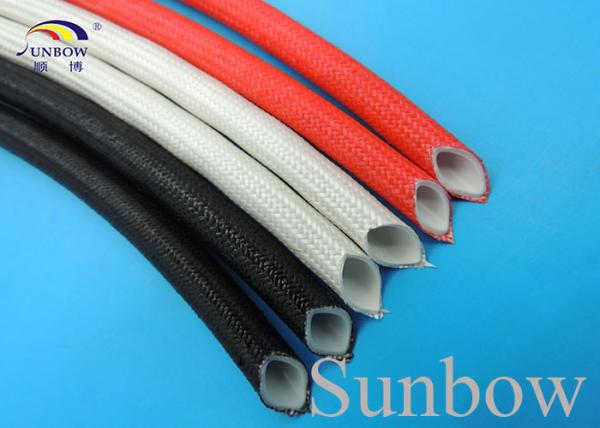

SB-SRS-70 Extruded silicone rubber tube reinforced with Non-Alkaline fiberglass braid, then coated with Silicone resin and treated.

It possesses excellent heat and cold resistance performance. It can be continuously operated at 200ºC high temperature. In extreme conditions it can resist 250ºC for a short time. Besides, excellent electrical and mechanical strength properties make it very suitable for a wide range of application. It popular used in

motors, home electrical appliances and dielectric etc.

Item	Performance	Note
Dielectric breakdown voltage KV AC	≥7.0	In air
	≥6.0	In water
	≥5.0	In 2% salt water
Thermal endurance	No indication of crack	250ºC × 1 hours
Fire resistance	VW-1	UL 1441

Inner Diameter / mm		Wall Thick mm	Standard package m/roll
Nominal /mm	Tolerance /mm	Wall Thick mm	Standard package m/roll
1.0-2.5mm	+0.20, -0.00	0.60±0.05mm	200
3.0-5.0mm	+0.30, -0.00	0.70±0.05mm	100
6.0-7.0mm	+0.35, -0.00	0.75±0.05mm	100
8.0-9.0mm	+0.40, -0.00	0.80±0.05mm	100
10.0-12.0mm	+0.50,-0.00	0.90±0.05mm	50
14.0-25.0mm	+0.65,-0.00	1.30±0.05mm	25
