Brand Name : SUNBOW
Model Number : SB-SGS-40
Certification : UL, REACH, ROHS, ISO9001:2008
Place of Origin : Shenzhen China
MOQ : 2000 meters
Price : USD
Payment Terms : Western Union, L/C, T/T
Supply Ability : 9,000,000meters/month
Delivery Time : 5~8 working days
Packaging Details : Sunbow standard packing
Product Name : Fiberglass Silicone Rubber Coated sleeving UL ROHS REACH SUPPORT
Material : Silicone resin and fiberglass sleeving
Color : White, others could be customized
Size Range : 0.5~30 mm
Certificates : UL, REACH, ROHS, ISO9001:2008
UL NO. : E333178
Application : AC motor, heater, wire hardness, bus bar, component leads, assemblies of electric components etc.
Working Temperature : 200 C

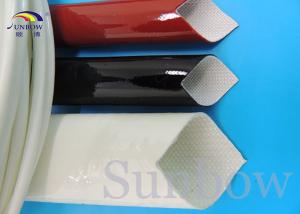

Fiberglass Silicone Rubber Coated sleeving UL ROHS REACH SUPPORT
Product Name:
Silicone Rubber Coated Fiberglass sleeving
Brand Name:Sunbow
Class Type: H
Working Temperature:200 C
Characteristics:Maximum flexibility,Possesses Dielectric Resistance, Chemical resistance, Moisture resistance, Radiation resistance, Excellent Heat stability, Abrasion resistance and insulation system compatibility
Features:
SB-SGS-70 Silicon sleeving is a highly protective sleeving with higher surface area for the absorption and retention of vacuum pressure impregnation resin
Over braid is slightly saturated , it retains its resin absorption properties
The combination of Silicon sleeving with the over-braid results in high protective sleeving.
Typical applications:
Aerospace and Aircraft wiring;
High voltage transformers;
Heat generating appliances;
Inner Diameter:0.5~50MM
Wall Thickness:We offer customized thickness as per customer's technical requirements.
Break Down Voltage Range:From 1.2kV to 10 kV
Color:White, other colors could be supplied upon customers' requirements.
![]() |
