Flame retardant UL224 vw -1 Soft thin wall Flexible PVC Tubings for wire harness

Name: Flame retardant UL224 vw 1 Soft thin wall Flexible PVC Tubings for wire harness
Brand: SUNBOW
Price: 0.01 USD

Brand Name : SUNBOW

Model Number : SB-PVC

Certification : UL, ROHS, REACH

Place of Origin : Shenzhen, China

MOQ : 2000meters

Price : USD 0.01-0.99/M

Payment Terms : L/C, T/T,Paypal

Supply Ability : 200000meter/week

Delivery Time : 7-10 work days

Packaging Details : packing by rolls, then rolls by carton.

Product name : PVC tube for wire harness

Working temperature : -30-105 degree

Voltage : 300v or 600v

Tensile strength : 10.4MPA

ul no. : E467953

Flammability : UL vw-1

Application : wire harness

Contact Now

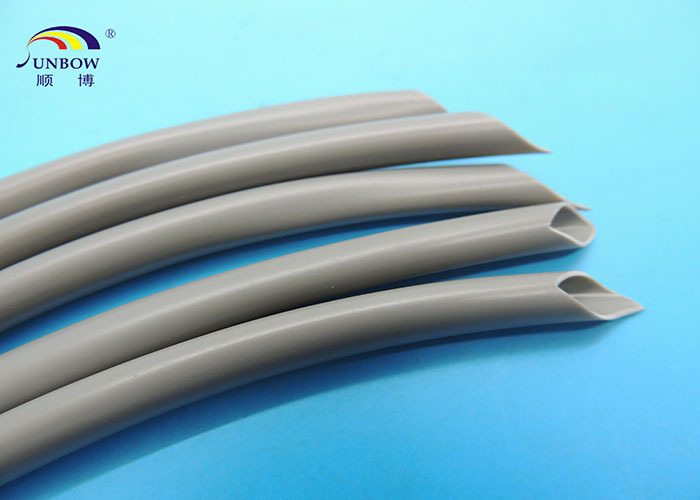

Flame retardant UL224 vw -1 Soft thin wall Flexible PVC Tubings for wire harness

STRUCTURE

UL Marked P.V.C Extruded Insulation Tube 5.5mm Black 600V is produced by superior and environmental- friendly polyvinyl colloidal particle, after drying, extruded to tubing when heated up and liquated, then packing in rolls after cooling.

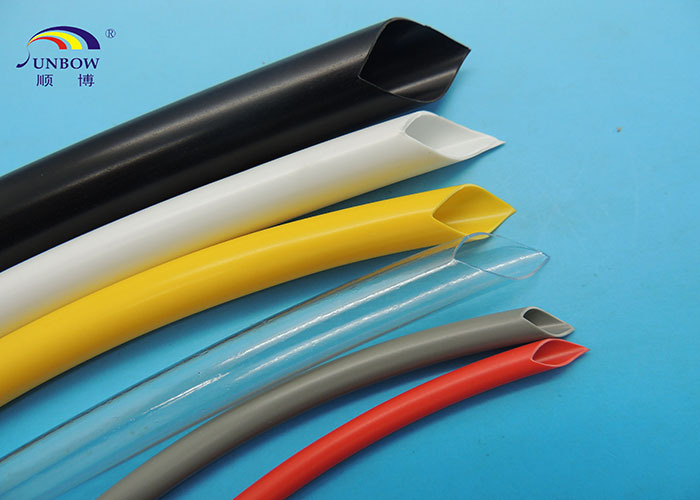

Flame retardant UL224 vw -1 Soft thin wall Flexible PVC Tubings for wire harness

SPECIFICATION

Item		Unit	Test Method	Numerical Value
				SB-300	SB-600
Voltage Rating		V		300	600
Temperature Rating		ºC	UL224	105
Voltage Resistance	Before Aging		UL224 23ºC	2500V/60sec
	After Aging		UL224 136ºC 168hrs	2500V/60sec
Volume Resistivity		Ωcm	UL224	≥1010
Tensile Strength	Before Aging	Mpa	UL224 23ºC	≥10.4
	After Aging	Mpa	UL224 136ºC 168hrs	≥7.3
Elongation	Before Aging	%	UL224 23ºC	≥100%
	After Aging	%	UL224 136ºC 168hrs	≥100%
Flexibility			UL224 136ºC 168hrs	No Cracking
Heat Shock			UL224 180ºC 4hrs	No Cracking
Cold Bend			UL224 30ºC 1hrs	No Cracking
Copper Stability			UL224 136ºC 168hrs	No Corrosion
Flame Resistance			UL224	VW-1

DIMENSION

Inner Diameter (mm)	Wall Thickness(mm)		Package (m/roll)
Inner Diameter (mm)	SB-300	SB-600	Package (m/roll)
0.80±0.1	0.25±0.05	0.40±0.05	500
1.0±0.1	0.30±0.05	0.40±0.05	500
1.5±0.1	0.33±0.05	0.45±0.05	400
2.0±0.2	0.33±0.05	0.50±0.05	400
2.5±0.2	0.35±0.05	0.50±0.05	300
3.0±0.2	0.40±0.05	0.50±0.05	300
3.5±0.2	0.40±0.05	0.50±0.05	300
4.0±0.2	0.45±0.05	0.55±0.05	300
4.5±0.3	0.45±0.05	0.55±0.05	300
5.0±0.3	0.45±0.05	0.55±0.05	300
6.0±0.3	0.45±0.05	0.55±0.05	300
7.0±0.3	0.45±0.05	0.55±0.05	150
8.0±0.35	0.45±0.05	0.55±0.05	150
9.0±0.35	0.50±0.05	0.60±0.05	150
10.0±0.35	0.55±0.10	0.65±0.10	150
11.0±0.40	0.55±0.10	0.65±0.10	150
12.0±0.40	0.55±0.10	0.65±0.10	150
13.0±0.40	0.55±0.10	0.65±0.10	150
14.0±0.40	0.55±0.10	0.65±0.10	150
15.0±0.40	0.60±0.10	0.70±0.10	50
16.0±0.40	0.60±0.10	0.70±0.10	50
17.0±0.40	0.60±0.10	0.70±0.10	50
18.0±0.40	0.60±0.10	0.70±0.10	50
19.0±0.40	0.65±0.10	0.75±0.10	50
20.0±0.50	0.65±0.10	0.75±0.10	50
21.0±0.50	0.65±0.10	0.75±0.10	50
22.0±0.50	0.70±0.10	0.80±0.10	50
23.0±0.50	0.70±0.10	0.80±0.10	50
24.0±0.50	0.75±0.10	0.85±0.10	50
25.0±0.50	0.75±0.10	0.85±0.10	50
26.0±0.50	0.85±0.10	0.85±0.10	50

APPLICATION

With the excellent flexibility, mechanical and dielectric capability, flame resistance performance, UL Marked P.V.C Extruded Insulation Tube 5.5mm Black 600V is widely used in outside insulation protection of outgoing wires of electrical appliances, transformers, electrical motors or lighting equipment, electronic components, wire harness and etc.
