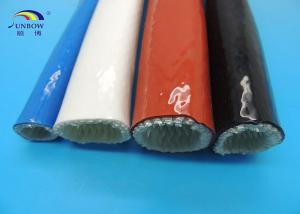

Fiberglass Fireproof Sleeve for Steel Plants , Flexible Fire Resistant Sleeves
1. Model Number
SB-SGS-FH
2. Working Temperature
-65℃ ~ 260℃ (It can work in 1650 degree high temperature for 15~30 seconds.)
3. Structure
Fire resistant heat resistant fireproof sleeve for steel plants is the non-alkali fiberglass braided sleeving coated with silicone resin. This sleeving possesses great heat insulation and flame-resistance performance.
4. Usage
Mainly used in steel plants, smelters, glass and other thermal places to protect the hose, hose assemblies and cables. It also helps maintain line temperature and reduce environmental overheating and overcooling.
5. Characteristics
1) Impede heat radiation of flame Sheds molten spatter of metals and glass
2) Resistant to slag and resin build-up, protect against abrasion, solvents and corrosive chemicals
3) Protect operators against scorching contacts of metal hoses and pipes
4) Impede heat lost and favor to save energy
5) No harmful by-products of combustion
6) Easy to install, when selecting protective hose sleeving, measure the outside diameter of your hose and add approximately 1/4."
6. Specification
| Inner Diameter (mm) | Wall Thickness (mm) | Standard Package (m/roll) |
| Nominal | Tolerance |
| 6.0 | +0.5 | 1.2 | 20 |
| 10.0 | +1.0 | 1.5 | 20 |
| 15.0 | +1.0 | 2.2 | 20 |
| 20.0 | +1.2 | 2.5 | 20 |
| 25.0 | +1.5 | 2.8 | 20 |
| 30.0 | +1.5 | 3.0 | 20 |
| 35.0 | +2.0 | 3.2 | 20 |
| 40.0 | +2.0 | 3.5 | 20 |
| 45.0 | +2.0 | 3.8 | 20 |
| 50.0 | +2.5 | 4.0 | 20 |
| 55.0 | +2.5 | 4.2 | 15 |
| 60.0 | +3.0 | 4.5 | 15 |
| 65.0 | +3.0 | 4.5 | 15 |
| 70.0 | +3.0 | 4.8 | 15 |
| 75.0 | +3.0 | 4.8 | 15 |
| 80.0 | +3.5 | 5.0 | 15 |
| 90.0 | +3.5 | 5.6 | 15 |
| 100.0 | +3.5 | 5.6 | 15 |
7. Why Us
1) ISO 9001 : 2008 TS 16949 standard factory manufacturer
2) high-tech enterprise in China
3) with 12-year manufacturing experience
4) factory direct sales
5) best price high quality product
6) quick delivery time
7) quick response for feedback
8) few complaints from customers
9) more competitive price for VIP customers
10) convenient situation near to seaport
11) 1650C high temperature resistant
12) high quality non-alkali fiberglass yarn
13) free samples are available
8. Company Profile
Shenzhen Sunbow Insulation Materials MFG. Co., Ltd, established in 2003, mainly engaged in the research & development, manufacture and sale of various insulation sleeving. And we had leading R&D engineers, had a batch of advantageous equipment and testing instruments. Now we had excess of 10 independent patents, gained high-tech enterprise in Shenzhen.
Our main products include fiberglass sleeving, silicone rubber tube, PVC tube, heat shrink tube, PTFE/FEP tube and so on. All our fiberglass sleeving had been obtained the UL and CSA certificates in 2010 (Cert No: E333178--UZIQ2, VW-1 for flame resistance requirement & E333177--UZFT2/8, 200C, 600V for thermal resistance requirement); Our heat shrink tube, silicone rubber tube and PTFE tube had been obtained UL certificate in 2013 (Cert. No. E360625); PVC tube had been obtained the UL certificates In in Apr.2014 (Cert.No.E467953); In May. 2012, our products successfully had been passed CQC test (Certificate No. CQC12134072554). It provides security for domestic and foreign home appliance supplier in Chinese mainland market. Till now, we are the only one fiberglass sleeving manufacturer which obtained UL, CSA, and CQC certificates. Also we are the only one manufacturer which can provide certificates for all color and maximum size range (from 0.55mm to 25.4mm). Also all our products are in conformance with the European RoHS requirements, furthermore, based on European new requirements, we re-applied and obtained German PFOA and PFOS certificates and European Reach report.
Our products are widely used in H&N Motor, home appliance, electric heating equipment, Lighting, electronic instruments, wiring harness, transformer, power adapter, communication equipment, high/low voltage power distribution complete equipment, petrochemical industry, coal-mining industry, electric system and space flight and aviation area etc.
Due to business expansion, our factory moved to Gongming street, Guangming New District in Shenzhen. It occupies nearly 10,000 square meters. We successfully passed ISO9001:2008 and TS16949 international quality management system, now ISO14001 system is also pushing.
