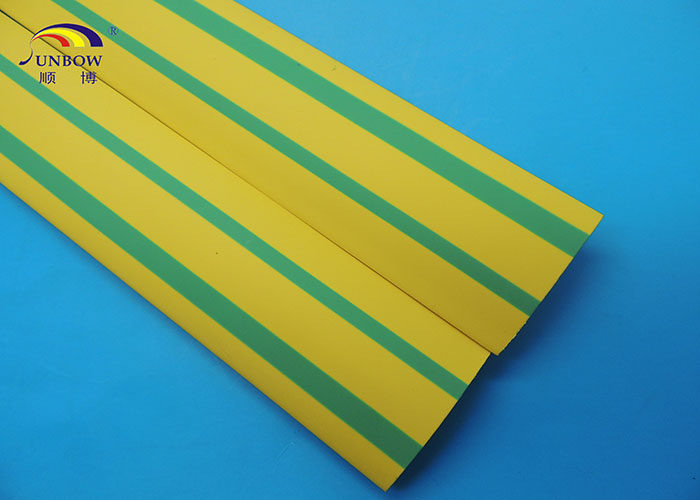

2:1 3:1 Yellow Green Stripped Flexible Flame Retardant Heat Shrink Tubing
Advantage: Yellow / Green Stripped Flexible Flame Retardant Heat Shrink Tubing
1. Great production ability as high as 9,000,000 meters/month
2. Competitive price with quality products
3. Whole color UL certificated with inner diameter 0.8mm - 180.0mm
Structure: Yellow / Green Stripped Flexible Flame Retardant Heat Shrink Tubing
Yellow / Green Stripped Flexible Flame Retardant Heat Shrink Tubing is made from excellent yellow and green polyolefin material with special method.
Usage: Yellow / Green Stripped Flexible Flame Retardant Heat Shrink Tubing
Yellow / Green Stripped Flexible Flame Retardant Heat Shrink Tubing has soft, flame retardant, environmental, bright color stand and stable performance. And it is mainly used in wire and cable conduit marks, electron, electricity, telecommunications, shipping, aerospace etc.
Characteristics: Yellow / Green Stripped Flexible Flame Retardant Heat Shrink Tubing
1. Shrink ratio: 2:1 & 3:1
2. Shrink temperature: 70ºC ~ 120ºC
3. Soft, flame retardant, environmental friendly, bright color stand and stable performance
4. Operating temperature: -55ºC ~ 125ºC
5. RoHS compliant
Specification: Yellow / Green Stripped Flexible Flame Retardant Heat Shrink Tubing
| Property | Test Method | Standard |
| Tensile Strength (MPA) | ASTM D2671 | ≥10.4 |
| Elongation (%) | ASTM D2671 | ≥ 200 |
| Dielectric Strength (KV/mm) | IEC243 | ≥15 |
| Volume Resistivity (Ω cm) | IEC 93 | ≥1x1014 |
| Tensile Strength After Aging | UL224 158ºC*168hrs | ≥ 7.3 |
| Elongation After Aging (%) | UL224 158ºC*168hrs | ≥100 |
| Heat Shock | UL224 250ºC*4hrs | No Cracking |
| Flame Resistance | UL224 | VW-1 |
Dimension: Yellow / Green Stripped Flexible Flame Retardant Heat Shrink Tubing
1) 2:1 yellow & green heat shrinkable tube
| Size | As Supplied (mm) | After Recovery (mm) | Standard Package (m/spool) | Application Range (mm) |
| Inner Diameter | Wall Thickness | Inner Diameter | Wall Thickness |
| Φ0.8 | 1.0±0.2 | 0.15±0.05 | ≤0.50 | 0.22±0.10 | 200 | 0.6~0.8 |
| Φ1.0 | 1.5±0.3 | 0.15±0.05 | ≤0.65 | 0.28±0.10 | 200 | 0.75~0.9 |
| Φ1.5 | 2.0±0.3 | 0.18±0.05 | ≤0.85 | 0.32±0.10 | 200 | 0.95~1.4 |
| Φ2.0 | 2.5±0.3 | 0.18±0.05 | ≤1.00 | 0.35±0.10 | 200 | 1.1~1.8 |
| Φ2.5 | 3.0±0.3 | 0.18±0.05 | ≤1.25 | 0.38±0.10 | 200 | 1.35~.3 |
| Φ3.0 | 3.5±0.4 | 0.18±0.05 | ≤1.50 | 0.40±0.10 | 200 | 1.6~2.7 |
| Φ3.5 | 4.0±0.4 | 0.22±0.05 | ≤1.80 | 0.42±0.10 | 200 | 1.85~3.2 |
| Φ4.0 | 4.5±0.4 | 0.25±0.05 | ≤2.00 | 0.45±0.10 | 200 | 2.1~3.6 |
| Φ4.5 | 5.0±0.4 | 0.25±0.05 | ≤2.30 | 0.50±0.10 | 100 | 2.35~4.0 |
| Φ5.0 | 5.5±0.4 | 0.25±0.05 | ≤2.5 | 0.55±0.10 | 100 | 2.6~4.5 |
| Φ6.0 | 6.5±0.4 | 0.28±0.05 | ≤3.0 | 0.55±0.10 | 100 | 3.1~5.4 |
| Φ7.0 | 7.5±0.4 | 0.28±0.05 | ≤3.5 | 0.55±0.10 | 100 | 3.7~6.3 |
| Φ8.0 | 8.5±0.5 | 0.28±0.05 | ≤4.0 | 0.60±0.10 | 100 | 4.2~7.2 |
| Φ9.0 | 9.5±0.5 | 0.30±0.08 | ≤4.5 | 0.60±0.10 | 100 | 4.7~8 |
| Φ10 | 10.5±0.5 | 0.30±0.08 | ≤5.0 | 0.60±0.10 | 100 | 5.2~9 |
| Φ11 | 11.5±0.5 | 0.30±0.08 | ≤5.5 | 0.60±0.10 | 100 | 5.7~10 |
| Φ12 | 12.5±0.5 | 0.30±0.08 | ≤6.0 | 0.60±0.10 | 100 | 6.2~11 |
| Φ13 | 13.5±0.5 | 0.35±0.10 | ≤6.5 | 0.65±0.10 | 100 | 6.7~12 |
| Φ14 | 14.5±0.5 | 0.35±0.10 | ≤7.0 | 0.65±0.10 | 100 | 7.3~13 |
| Φ15 | 15.5±0.6 | 0.40±0.12 | ≤7.5 | 0.70±0.10 | 100 | 7.8~14 |
| Φ16 | 16.5±0.6 | 0.40±0.12 | ≤8.0 | 0.70±0.10 | 100 | 8.3~15 |
| Φ17 | 17.5±0.6 | 0.40±0.12 | ≤8.5 | 0.70±0.10 | 100 | 8.8~16 |
| Φ18 | 19.0±0.7 | 0.40±0.15 | ≤9.0 | 0.80±0.15 | 100 | 9.3~17 |
| Φ20 | 22.0±0.7 | 0.40±0.15 | ≤10.0 | 0.80±0.15 | 100 | 10.4~19 |
| Φ22 | 24.0±0.7 | 0.40±0.15 | ≤11.0 | 0.80±0.15 | 100 | 11.4~21 |
| Φ25 | 26.0±0.7 | 0.55±0.15 | ≤12.5 | 0.90±0.15 | 50 | 12.8~24 |
| Φ28 | 29.0±0.7 | 0.55±0.15 | ≤14.0 | 0.90±0.15 | 50 | 14.4~29 |
| Φ30 | 31.5±0.7 | 0.55±0.15 | ≤15.0 | 0.95±0.15 | 50 | 16~29 |
| Φ35 | 36.5±0.7 | 0.55±0.15 | ≤17.5 | 1.00±0.15 | 50 | 18~34 |
| Φ40 | 41.5±0.7 | 0.55±0.15 | ≤20.0 | 1.00±0.15 | 50 | 21~39 |
| Φ45 | 46.0±0.7 | 0.55±0.15 | ≤22.5 | 1.00±0.15 | 25 | 23~44 |
| Φ50 | 51.0±0.7 | 0.55±0.15 | ≤25.0 | 1.00±0.15 | 25 | 26~49 |
| Φ60 | ≥60 | 0.60±0.15 | ≤30 | 1.55±0.20 | 25 | 35~55 |
| Φ70 | ≥70 | 0.65±0.15 | ≤35 | 1.60±0.20 | 25 | 40~65 |
| Φ80 | ≥80 | 0.70±0.15 | ≤40 | 1.70±0.20 | 25 | 45~75 |
| Φ90 | ≥90 | 0.75±0.15 | ≤45 | 1.90±0.20 | 25 | 50~88 |
| Φ100 | ≥100 | 0.80±0.20 | ≤50 | 2.10±0.20 | 25 | 55~95 |
| Φ120.0 | ≥120 | 0.85±0.20 | ≤60 | 2.20±0.20 | 15 | 65~115 |
| Φ150.0 | ≥150 | 0.90±0.20 | ≤75 | 2.20±0.20 | 15 | 80~145 |
| Φ180.0 | ≥180 | 0.95±0.20 | ≤90 | 2.30±0.20 | 15 | 95~175 |
2) 3:1 yellow & green heat shrinkable tube
| Inner Diameter | As Supplied (mm) | After Recovery (mm) | Standard Package |
| (inch) | (mm) | Inner Diameter | Wall Thickness | (m/spool) |
| 1/8 | Φ3.2 | ≥3.2 | ≤1.0 | 0.55±0.15 | 200 |
| 3/16 | Φ4.8 | ≥4.8 | ≤1.5 | 0.60±0.15 | 100 |
| 1/4 | Φ6.4 | ≥6.4 | ≤2.0 | 0.65±0.15 | 100 |
| 3/8 | Φ9.5 | ≥9.5 | ≤3.0 | 0.75±0.15 | 50 |
| 1/2 | Φ12.7 | ≥12.7 | ≤4.0 | 0.75±0.20 | 50 |
| 3/4 | Φ19.1 | ≥19.1 | ≤6.0 | 0.85±0.20 | 50 |
| 1 | Φ25.4 | ≥25.4 | ≤8.0 | 1.00±0.20 | 50 |
| 1-1/2 | Φ39.0 | ≥39.0 | ≤13.0 | 1.50±0.20 | 50 |
Color: Yellow green.
About SUNBOW
In 2003, Shenzhen Sunbow Insulation Materials MFG. Co., Ltd was established in the area which is running with time. Our company covers over 10000 square meters and is mainly engaged in researching, developing, producing and selling various insulation materials. With excellent sense of innovation and industry-leading technology, we’ve launched fiberglass sleeving, silicone rubber tubing, PVC soft tube, all kinds of heat shrink tubes, expandable sleeving, PTFE tube, corrugated pipe, polyimide film tube etc, which are mainly used in electronics, motors, transformers, inverters, high and low voltage power equipment, electricity, telecom, automotive, new energy, railway, aerospace , petrochemical, defense and other fields.
As one of the high-tech enterprises in Shenzhen, Sunbow advocates “Innovation as Driving force” and devotes itself to researching and developing green environmental insulation materials. We have a professional R & D center, and a developing team with modern innovation and professional technology. Based on the customer-oriented, continuous-innovation and independent R &D, we SUNBOW have obtained more than 10 patents.
