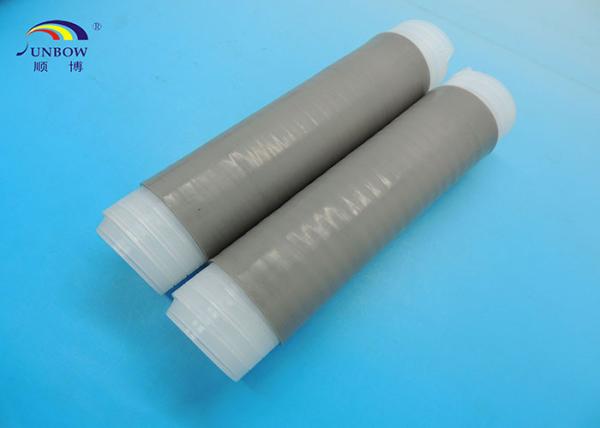

40A - 60A Hardness Cold Shrink Tube Cable Accessories for 10KV - 35KV Insulation

Name: 40A 60A Hardness Cold Shrink Tube Cable Accessories for 10KV 35KV Insulation
Brand: SUNBOW
Price: 1 USD

Wholesale 40A - 60A Hardness Cold Shrink Tube Cable Accessories for 10KV - 35KV Insulation from china suppliers

Brand Name : SUNBOW

Model Number : SB-CST

Certification : rohs

Place of Origin : Shenzhen, China

MOQ : 1000 meters

Supply Ability : 100,000 meter each month

Delivery Time : 6-9 work days

Packaging Details : standard packing

Model number : SB-CST

Product name : Cold shrink tube Cable accessories

Working temperature : Normal status

Application : Power station

Hardness : 40-60A

MPa : ≥10

Tensile feature : (KN/m) ≥35

Longevity : 20 years

Contact Now

Cold shrink tube Cable accessories for 10-35KV insulation

Model Number: SB-CST

Voltage	Cores	Description	Cable size	Model number
18/30kV(36)	1	Indoor	25-50mm2	18/30kVWLN-1-1
			70-150mm2	18/30kVWLN-1-2
			185-400mm2	18/30kVWLN-1-3
			500-630mm2	18/30kVWLN-1-4
	1	Outdoor	25-50mm2	18/30kVWLW-1-1
			70-150mm2	18/30kVWLW-1-2
			185-400mm2	18/30kVWLW-1-3
			500-630mm2	18/30kVWLW-1-4
12/20kV(24)	1	Indoor	50-120mm2	12/20kVWLN-1-1
			150-300mm2	12/20kVWLN-1-2
			400-500mm2	12/20kVWLN-1-3
			630mm2	12/20kVWLN-1-4
	1	Outdoor	50-120mm2	12/20kVWLW-1-1
			150-300mm2	12/20kVWLW-1-2
			400-500mm2	12/20kVWLW-1-3
			630mm2	12/20kVWLW-1-4
8.7/15kV(17.5)	1	Indoor	25-50mm2	8.7/15kVWLN-1-1
			70-120mm2	8.7/15kVWLN-1-2
			150-240mm2	8.7/15kVWLN-1-3
			300-400mm2	8.7/15kVWLN-1-4
	1	Outdoor	25-50mm2	8.7/15kVWLW-1-1
			70-120mm2	8.7/15kVWLW-1-2
			150-240mm2	8.7/15kVWLW-1-3
			300-400mm2	8.7/15kVWLW-1-4
6.35/11kV(12)	1	Indoor	25-50mm2	6.35/11kVWLN-1-1
			70-120mm2	6.35/11kVWLN-1-2
			150-240mm2	6.35/11kVWLN-1-3
			300-400mm2	6.35/11kVWLN-1-4
	1	Outdoor	25-50mm2	6.35/11kVWLW-1-1
			70-120mm2	6.35/11kVWLW-1-2
			150-240mm2	6.35/11kVWLW-1-3
			300-400mm2	6.35/11kVWLW-1-4
0.6/1kV(1.2)	1	Indoor or Outdoor	25-50mm2	0.6/1kVWLT-1-1
			70-120mm2	0.6/1kVWLT-1-2
			150-240mm2	0.6/1kVWLT-1-3
			300-400mm2	0.6/1kVWLT-1-4
18/30kV (36)	3	Indoor	25-50mm2	18/30kVWLN-3-1
			70-150mm2	18/30kVWLN-3-2
			185-400mm2	18/30kVWLN-3-3
			500-630mm2	18/30kVWLN-3-4
	3	Outdoor	25-50mm2	18/30kVWLW-3-1
			70-150mm2	18/30kVWLW-3-2
			185-400mm2	18/30kVWLW-3-3
			500-630mm2	18/30kVWLW-3-4
12/20kV (24)	3	Indoor	50-120mm2	12/20kVWLN-3-1
			150-300mm2	12/20kVWLN-3-2
			400-500mm2	12/20kVWLN-3-3
			630mm2	12/20kVWLN-3-4
	3	Outdoor	50-120mm2	12/20kVWLW-3-1
			150-300mm2	12/20kVWLW-3-2
			400-500mm2	12/20kVWLW-3-3
			630mm2	12/20kVWLW-3-4
8.7/15kV(17.5)	3	Indoor	25-50mm2	8.7/15kVWLN-3-1
			70-120mm2	8.7/15kVWLN-3-2
			150-240mm2	8.7/15kVWLN-3-3
			300-400mm2	8.7/15kVWLN-3-4
	3	Outdoor	25-50mm2	8.7/15kVWLW-3-1
			70-120mm2	8.7/15kVWLW-3-2
			150-240mm2	8.7/15kVWLW-3-3
			300-400mm2	8.7/15kVWLW-3-4
6.35/11kV(12)	3	Indoor	25-50mm2	6.35/11kVWLN-3-1
			70-120mm2	6.35/11kVWLN-3-2
			150-240mm2	6.35/11kVWLN-3-3
			300-400mm2	6.35/11kVWLN-3-4
	3	Outdoor	25-50mm2	6.35/11kVWLW-3-1
			70-120mm2	6.35/11kVWLW-3-2
			150-240mm2	6.35/11kVWLW-3-3
			300-400mm2	6.35/11kVWLW-3-4
0.6/1kV(1.2)	3 or 4 or 5	Indoor or Outdoor	25-50mm2	0.6/1kVWLT-3(4/5)-1
			70-120mm2	0.6/1kVWLT-3(4/5)-2
			150-240mm2	0.6/1kVWLT-3(4/5)-3
			300-400mm2	0.6/1kVWLT-3(4/5)-4

40A - 60A Hardness Cold Shrink Tube Cable Accessories for 10KV - 35KV Insulation

See different between cold and heat

Heat shrink cable accessories are made of rubber/plastic composites. After exposure to radiation, the semi-finished product is heated and stretched to expand its dimension. It is then rapidly cooled in order to keep its shape. When installing, the cable accessories will shrink back down to the original dimensions by applying heating because of their “shape memory effect”. Therefore, the heat shrink cable accessories will provide excellent insulation, sealing and mechanical protection for power cables
