1-36 kV Cable Accessories Cold Shrink Termination Kits for Power Grid / Power Station

Name: 136 kV Cable Accessories Cold Shrink Termination Kits for Power Grid Power Station
Brand: SUNBOW
Price: 1 USD

Wholesale 1-36 kV Cable Accessories Cold Shrink Termination Kits for Power Grid / Power Station from china suppliers

Brand Name : SUNBOW

Model Number : SB-WLW

Certification : ROHS, REACH

Place of Origin : Shenzhen, China

MOQ : 1000 pcs each size

Packaging Details : standard packing

Product name : Cold Shrink Termination Kits 1-36 kV

Raw material : liquid silicone rubber

Brand name : SUNBOW

Contact Now

Cable Accessories - Cold Shrink Termination Kits 1-36 kV for power grid

Model Number: SB-WLW

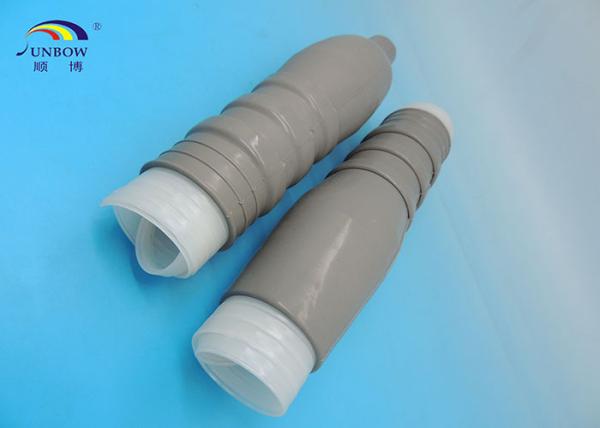

The cold shrink termination is available for indoor & outdoor applications for single core and 3-core cables up to 36kV. The termination is one-piece design manufactured from high quality liquid silicone rubber. The cold shrink termination is factory expanded on a removable inner-supporting core. Once the termination is positioned onto the cable core, the supporting core is unwound and removed, and the live-memory action of the material shrinks the termination into place. The termination kit includes all the necessary components to make the installation.

Features

Simple and fast installation, no heat or special tools required
One-piece design with integrated stress control
Offering protection against aging, tracking and erosion
High resistance to fungus, acid, alkalis and ozone
Accommodating a wide range of cable sizes
For indoor or outdoor applications

Selection Table

Voltage U₀ /U (U_m)	Cores	Cable Cross Section /mm²	Diameter over Insulation /mm	Product No.
18/30kV(36)	1, 3	35-50	22-27	18/30kVWLN-1/1(3/1)
	Indoor	70-185	27.5-35	18/30kVWLN-1/2(3/2)
		240-500	35.5-46	18/30kVWLN-1/3(3/3)
		630	46.5-55	18/30kVWLN-1/4(3/4)
	1, 3	35-50	22-27	18/30kVWLW-1/1(3/1)
	Outdoor	70-185	27.5-35	18/30kVWLW-1/2(3/2)
		240-500	35.5-46	18/30kVWLW-1/3(3/3)
		630	46.5-55	18/30kVWLW-1/4(3/4)
12/20kV(24)	1, 3	25-50	18-21.5	12/20kVWLN-1/1(3/1)
	Indoor	70-120	21-26.5	12/20kVWLN-1/2(3/2)
		150-240	25.5-32	12/20kVWLN-1/3(3/3)
		300-400	32.5-37	12/20kVWLN-1/4(3/4)
		500-630	39-44.3	12/20kVWLN-1/5(3/5)
	1, 3	25-50	16-22	12/20kVWLW-1/1(3/1)
	Outdoor	70-120	20-27	12/20kVWLW-1/2(3/2)
		150-240	24-32	12/20kVWLW-1/3(3/3)
		300-400	30-37	12/20kVWLW-1/4(3/4)
		500-630	39-44.3	12/20kVWLW-1/5(3/5)
8.7/15kV(17.5)	1, 3	25-50	16-19.5	8.7/15kVWLN- 1/1(3/1)
	Indoor	70-120	19-24.5	8.7/15kVWLN- 1/2(3/2)
		150-240	23-30	8.7/15kVWLN- 1/3(3/3)
		300-400	30.5-35	8.7/15kVWLN-1/4(3/4)
		500-630	37-42.3	8.7/15kVWLN-1/5(3/5)
	1, 3	25-50	16-19.5	8.7/15kVWLW- 1/1(3/1)
	Outdoor	70-120	19-24.5	8.7/15kVWLW- 1/2(3/2)
		150-240	23-30	8.7/15kVWLW- 1/3(3/3)
		300-400	30.5-35	8.7/15kVWLW-1/4(3/4)
		500-630	37-42.3	8.7/15kVWLW-1/5(3/5)
6/10kV(12)	1, 3	50-70	16-19.5	6/10kVWLN- 1/1(3/1)
	Indoor	95-150	19-24.5	6/10kVWLN- 1/2(3/2)
		185-300	23.5-30	6/10kVWLN-1/3(3/3)
		400-500	30.5-35	6/10kVWLN-1/4(3/4)
		630	37-42.3	6/10kVWLN-1/5(3/5)
	1, 3	50-70	16-19.5	6/10kVWLW- 1/1(3/1)
	Outdoor	95-150	19-24.5	6/10kVWLW- 1/2(3/2)
		185-300	23.5-30	6/10kVWLW- 1/3(3/3)
		400-500	30.5-35	6/10kVWLW- 1/4(3/4)
		630	37-42.3	6/10kVWLW- 1/5(3/5)
0.6/1kV(1.2)	1,3,	25-50	-	0.6/1kVWLT-1(3,4,5)/1
	4, 5	70-120		0.6/1kVWLT-1(3,4,5)/2
	Indoor or	150-240		0.6/1kVWLT-1(3,4,5)/3
	Outdoor	300-400		0.6/1kVWLT-1(3,4,5)/4

1-36 kV Cable Accessories Cold Shrink Termination Kits for Power Grid / Power Station

Heat shrink terminal products for comparison,

1-36 kV Cable Accessories Cold Shrink Termination Kits for Power Grid / Power Station
