Brand Name : SUNBOW
Model Number : Heat Shrink Terminations and Joints
Certification : UL
Place of Origin : Shenzhen, China
MOQ : 10 sets
Price : EXW, FOB Shenzhen, CNF, CIF
Payment Terms : T/T, LC, WU, Paypal
Supply Ability : 9,000,000meters/month
Delivery Time : 3~7 working days
Packaging Details : Carton box
Product name : 11kV Heat Shrink Cable Joints Cable Accessories for 3 Core XLPE Cables
Voltage : 1KV, 10KV,35KV
Characteristics : High mechanical strength, shrink swiftly, no cracks, stability
Cores : 1 core and 3 cores
Classification : Indoor terminations and joints; outdoor terminations and joints
Application : XLPE cables and PILC cables
11kV Heat Shrink Cable Joints Cable Accessories for 3 Core XLPE Cables
Sunbow Heat shrinkable Terminations and Joints
1.conductor
2.inner semi-conductive layer
3. XLPE insulation
4.outer semi-conductive layer
5.copper shielded tape
6. connector
7.stress control tube
8. inner insulated tube
9. outer insulated tube
10.shielded tube
11.semi-conductive tape
12. filling glue
13.stress dispersed glue
14. sealing glue
15.copper shielded net
16. copper weaved tape
17. Bundling wire
Dimension (Heat Shrink Joints )
Voltage | Cores | Cable Size | Model Number |
18/30kV (36) | 1 | 50mm2 | 18/30kVRSJY-1-1 |
70-120mm2 | 18/30kVRSJY-1-2 | ||
150-240mm2 | 18/30kVRSJY-1-3 | ||
3 | 50mm2 | 18/30kVRSJY-3-1 | |
70-120mm2 | 18/30kVRSJY-3-2 | ||
150-240mm2 | 18/30kVRSJY-3-3 | ||
12/20kV (24) | 1 | 35-50mm2 | 12/20kVRSJY-1-1 |
70-120mm2 | 12/20kVRSJY-1-2 | ||
150-240mm2 | 12/20kVRSJY-1-3 | ||
300mm2 | 12/20kVRSJY-1-4 | ||
3 | 35-50mm2 | 12/20kVRSJY-3-1 | |
70-120mm2 | 12/20kVRSJY-3-2 | ||
150-240mm2 | 12/20kVRSJY-3-3 | ||
300mm2 | 12/20kVRSJY-3-4 | ||
8.7/15kV (17.5) | 1 | 25-50mm2 | 8.7/15kVRSJY-1-1 |
70-120mm2 | 8.7/15kVRSJY-1-2 | ||
150-240mm2 | 8.7/15kVRSJY-1-3 | ||
300mm2 | 8.7/15kVRSJY-1-4 | ||
3 | 25-50mm2 | 8.7/15kVRSJY-3-1 | |
70-120mm2 | 8.7/15kVRSJY-3-2 | ||
150-240mm2 | 8.7/15kVRSJY-3-3 | ||
300mm2 | 8.7/15kVRSJY-3-4 | ||
6.35/11kV (12) | 1 | 25-50mm2 | 6.35/11kVRSJY-1-1 |
70-120mm2 | 6.35/11kVRSJY-1-2 | ||
150-240mm2 | 6.35/11kVRSJY-1-3 | ||
300-400mm2 | 6.35/11kVRSJY-1-4 | ||
3 | 25-50mm2 | 6.35/11kVRSJY-3-1 | |
70-120mm2 | 6.35/11kVRSJY-3-2 | ||
150-240mm2 | 6.35/11kVRSJY-3-3 | ||
300-400mm2 | 6.35/11kVRSJY-3-4 |
![]() |

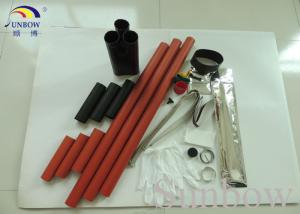

11kV Heat Shrink Cable Joints Cable Accessories for 3 Core XLPE Cables Images |
