PE Heatshrink adhesive lined end cap for cable , Hot Melt Glue

Product Categories
Shenzhen Sunbow Insulation Materials MFG. CO., LTD
Contact Now

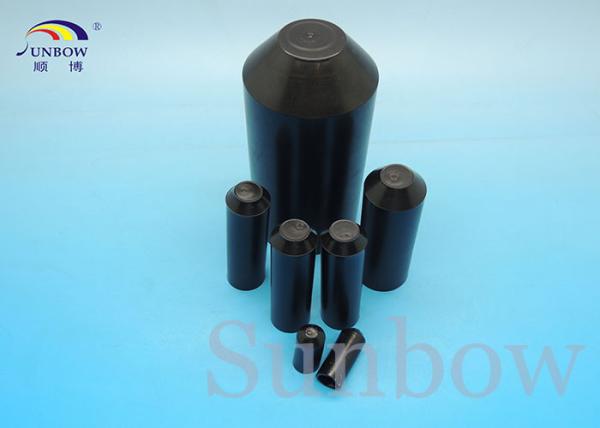

PE Heatshrink adhesive lined end cap for cable , Hot Melt Glue

Brand Name : SUNBOW

Model Number : SB-WRSFM

Certification : UL E360625

Place of Origin : Shenzhen, China

MOQ : 100 pcs each size each color

Price : USD0.07-13.4 per PCS

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 100000000000000PCS per month

Delivery Time : 7~10 days upon order quantity

Packaging Details : standard carton packing

Part Number : SB-WRSFM

Product : PE Cable End caps Heatshrink adhesive lined end caps For Cable Accessories

Standard Color : Black

Size Range : 11mm - 250mm

Material : Polyolefin , Hot Melt Glue

Shrink Ratio : 2 to 1

Shrink Temp : 110~130 C

Tensile Strength : > 13MPa

Cable Range : 6~240mm

Working Temp : -45~105 C

Contact Now

PE Heatshrink adhesive lined end cap for cable , Hot Melt Glue

Product Description

Heatshrink adhesive lined end caps are used to seal the ends of plastic, rubber and paper insulated cables, from moisture, dirt and corrosion.

Product Features

Resistant to common fluids and chemicals
Seals and protects cable ends (Waterproof)

Heat Shrink End Caps

Material: Polyolefin
Wall Type: Heavy Wall
Temperature Range: -45~105 C
Shrink Ration: 2: 1
Color: Black
Length:22~270mm
Wire Range: 6~240mm
Shrink Temperature: 110~130 C

Features

  • The End Cap is adhesive lined to bond with the heat shrink it overlaps;
  • Hot melt adhesive seals and insulates in one step to speed installation;
  • Adhesive lining will prevent moisture penetration, allowing for long term storage of cable;
  • Forms pressure-tight seal on ends of communication and power cables;
  • Shrink ratio of 2:1 insulates a wide range of diameters and irregular shapes;
  • Cross-linked UV resistant material improves chemical and temperature resistance;
  • Continuous use temperature of up to 105°C;
  • Shrink temperature of 110-130 °C;
  • Dual wall end cap, with internal wall of hot-melt adhesive provides excellent bonding to plastic and metals;
  • Capable of sealing the entire surface of a cable or wire.

Technical data

Property Test Method Standard Value
Operating temperature IEC 216 -45ºC to+105ºC
Tensile strength ASTM-D 2671 ≥13MPa
Elongation at break ASTM-D 2671 ≥300%
Tensile strength after aging ASTM-D-2671/120ºC,168hrs ≥10MPa
Elongation at break after aging ASTM-D-2671/120ºC,168hrs ≥240%
Dielectric strength IEC 243 ≥15kV/mm
Volume resistance ASTM-D-2303 ≥1×1013Ω.cm
Dielectric constant IEC 250 3.0
Radial shrinkage - ≥50%
Eccentricity ASTM-D-2671 ≤35%
Low Temperature Flexibility ASTM-D-2671 -40ºC, 4hrs, no cracking
Minimum shrink temperature - 90ºC

Minimum fully recovered

temperature

 - 130ºC

Dimension

Size

Size after recovery(mm)

Size as supplied (mm)

Cable sizes(mm)

Size

Inner Diameter

Wall thickness

Inner Diameter

Wall thickness

length

Outer Diameter

Φ 11

≤6.5

1.1±0.1

≥11

0.7±0.2

≥22

Φ6-9

Φ 16

≤8.0

2.5±0.1

≥16

1.2±0.2

≥70

Φ9-14

Φ 20

≤8.0

2.5±0.1

≥20

1.2±0.2

≥70

Φ9-17

Φ 25

≤11

2.5±0.1

≥25

1.2±0.2

≥80

Φ12-22

Φ 32

≤17

2.6±0.1

≥32

1.5±0.2

≥90

Φ17-27

Φ 40

≤15

2.8±0.1

≥40

1.5±0.2

≥90

Φ20-35

Φ 55

≤25

2.8±0.1

≥55

1.5±0.2

≥125

Φ28-45

Φ 75

≤30

3.2±0.1

≥75

1.8±0.2

≥145

Φ40-65

Φ 100

≤42

3.5±0.1

≥100

1.8±0.2

≥140

Φ50-90

Φ 120

≤59

3.5±0.1

≥120

1.8±0.2

≥155

Φ70-110

Φ 140

≤63

4.0±0.1

≥140

2.0±0.2

≥180

Φ90-130

Φ 250

≤94

4.0±0.1

≥250

2.0±0.2

≥270

Φ120-240

PE Cable End caps Heatshrink adhesive lined end caps For Cable Accessories
