Adhesive Lined Hearshrink End Cap End Caps Heat Shrinkable Tubing

Name: Adhesive Lined Hearshrink End Cap End Caps Heat Shrinkable Tubing
Brand: Sunbow
Price: 0.07 USD

Wholesale Adhesive Lined Hearshrink End Cap End Caps Heat Shrinkable Tubing from china suppliers

Brand Name : Sunbow

Model Number : SB-WRSFM

Certification : UL E360625

Place of Origin : Shenzhen, China

MOQ : 100 pcs each size each color

Price : USD0.07-13.4 per PCS

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 100000000000000PCS per month

Delivery Time : 5~10 days upon order quantity

Packaging Details : standard carton packing

Product name : Adhesive Lined Hearshrink End Cap End Caps Heat Shrinkable Tubing

Color : default color black

Size : 11mm - 250mm

ul : E360625

Material : polyolefin and adhesive inside

Shrink Ratio : 2:1

Shrink Temp : 110~130 C

Contact Now

Adhesive Lined Hearshrink End Cap End Caps Heat Shrinkable Tubing

Dimension

Size	Size after recovery(mm)		Size as supplied (mm)			Cable sizes(mm)
Size	Inner Diameter	Wall thickness	Inner Diameter	Wall thickness	length	Outer Diameter
Φ 11	≤6.5	1.1±0.1	≥11	0.7±0.2	≥22	Φ6-9
Φ 16	≤8.0	2.5±0.1	≥16	1.2±0.2	≥70	Φ9-14
Φ 20	≤8.0	2.5±0.1	≥20	1.2±0.2	≥70	Φ9-17
Φ 25	≤11	2.5±0.1	≥25	1.2±0.2	≥80	Φ12-22
Φ 32	≤17	2.6±0.1	≥32	1.5±0.2	≥90	Φ17-27
Φ 40	≤15	2.8±0.1	≥40	1.5±0.2	≥90	Φ20-35
Φ 55	≤25	2.8±0.1	≥55	1.5±0.2	≥125	Φ28-45
Φ 75	≤30	3.2±0.1	≥75	1.8±0.2	≥145	Φ40-65
Φ 100	≤42	3.5±0.1	≥100	1.8±0.2	≥140	Φ50-90
Φ 120	≤59	3.5±0.1	≥120	1.8±0.2	≥155	Φ70-110
Φ 140	≤63	4.0±0.1	≥140	2.0±0.2	≥180	Φ90-130
Φ 250	≤94	4.0±0.1	≥250	2.0±0.2	≥270	Φ120-240

Technical data

Property	Test Method	Standard Value
Operating temperature	IEC 216	-45ºC to+105ºC
Tensile strength	ASTM-D 2671	≥13MPa
Elongation at break	ASTM-D 2671	≥300%
Tensile strength after aging	ASTM-D-2671/120ºC,168hrs	≥10MPa
Elongation at break after aging	ASTM-D-2671/120ºC,168hrs	≥240%
Dielectric strength	IEC 243	≥15kV/mm
Volume resistance	ASTM-D-2303	≥1×1013Ω.cm
Dielectric constant	IEC 250	3.0
Radial shrinkage	-	≥50%
Eccentricity	ASTM-D-2671	≤35%
Low Temperature Flexibility	ASTM-D-2671	-40ºC, 4hrs, no cracking
Minimum shrink temperature	-	90ºC
Minimum fully recovered temperature	-	130ºC

Specifically used with Heat Shrink Tubing at the end of Wires and Cables.

These Heat Shrink End Caps provide an easy and efficient way of sealing, insulating and shielding cable or wire ends.

Adhesive lined heat shrinkable polyolefin cable caps used to seal the ends of plastic, rubber and paper insulated cables from moisture, dirt and corrosion.

Cable caps are internally coated with a hot-melt adhesive.

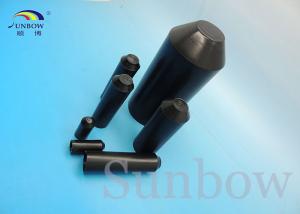

Adhesive Lined Hearshrink End Cap End Caps Heat Shrinkable Tubing

Adhesive Lined Hearshrink End Cap End Caps Heat Shrinkable Tubing Images
